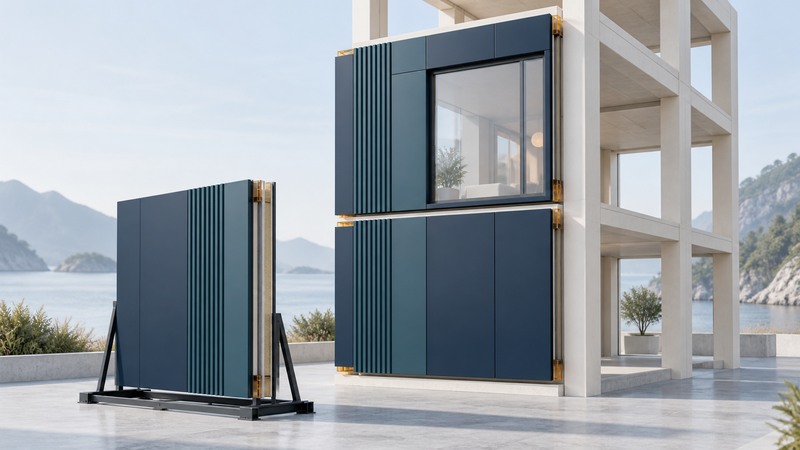

A building-frame model carries two facade panels beside a separate panel on a support rack.
Conceptual facade model; connections, joints and temporary conditions require project-specific engineering.

Prefabricated architectural facades combine factory-made elements with site-installed connections and joints. Their success depends on a clear division of design and installation responsibilities, a coordinated enclosure strategy and a realistic delivery plan.

Start with the building geometry, structural system, environmental loads, performance brief, desired appearance and procurement schedule. This guide helps owners, architects and construction managers prepare the coordination brief; the project engineers and enclosure specialists must design the actual assembly.

Define what the facade package includes

A factory-made panel can be a cladding component or part of a broader enclosure package. Some systems integrate windows, insulation and other layers before delivery. Ask the supplier to draw the boundary of its scope and show what remains for site trades.

Clark Pacific's prefabricated-facade guidance emphasizes early collaboration and scope review. The practical implication is to engage the supplier while panel geometry, interfaces and construction sequence can still be coordinated, with responsibilities recorded in the project documents.

Also identify structural function. High Concrete distinguishes cladding and loadbearing precast wall systems. A facade's appearance does not tell you whether it carries other building loads. Have the structural designer define the load path and the scope of delegated design.

Build a responsibility matrix around the interfaces

Decisions to assign before fabrication
InterfaceQuestion to settleRequired project record
Panel to structureWho designs supports and connections, and accommodates movement and tolerances?Design criteria, connection details, review responsibility and survey requirements.
Panel to panelHow do joints manage movement, air and water?Coordinated joint detail, material compatibility and installation/inspection access.
Window to panelWhich glazing, seals, flashing and tests belong to the factory package?Exact configuration, interface detail and factory/site acceptance scope.
Facade to roof and baseWhere do control layers continue into adjacent assemblies?Transition details with named trade responsibilities.
Floor edge and penetrationsHow are thermal, acoustic and fire-related requirements resolved?Project-specific assemblies, continuity details and inspection evidence.
Delivery to final fixingWho manages transport, access, handling and temporary conditions?Approved logistics and erection planning by the responsible specialists.

For each row, assign a decision owner, designer, installer, reviewer and required completion date. “By others” needs a named party and a drawing reference. Keep the matrix linked to current revisions so a panel change reaches the people designing its adjacent systems.

Write the performance brief before selecting finishes

Define the project's air, water, thermal, structural, fire, acoustic and appearance requirements with the design team. Ask which are established by product data, calculations, tested assemblies, mockups or field checks. State the applicable standards and acceptance criteria in the project specification.

A material sample establishes color and texture; it does not establish the performance of a completed enclosure. A test report is most useful when the team can explain how its size, materials, joints, supports and openings relate to the proposed configuration.

Review the weakest transitions explicitly: corners, parapets, bases, window perimeters, movement joints and service penetrations. The goal is continuity of the required control layers across both factory and site work. Resolve differences between architectural, structural and trade drawings before manufacturing.

Use mockups and tolerances to find conflicts early

Agree what the mockup will demonstrate: appearance, dimensional coordination, installation sequence, interfaces or specified performance testing. A visual mockup and a performance mockup can have different purposes. Record findings, approved revisions and the version authorized for production.

Have the team define how actual structural positions will be surveyed and compared with the allowable installation range. A tolerance should have a reference, a responsible party and an agreed response when an observation falls outside it.

Plan the sequence through completion

Coordinate factory release with site readiness, transport limitations, storage, access and installation order. Identify work that becomes inaccessible once panels are fixed. The erection team should supply the project-specific handling and temporary-support plan; this article supplies no lifting or connection procedure.

Compare total delivered-and-completed scope between options. Include design assistance, mockups, testing, transport, installation access, joints, transitions, site finishing and protection. Ask what happens if the structure or an adjacent trade is late, and who authorizes a revised delivery sequence.

Hand over a serviceable enclosure

  • Retain approved shop drawings, calculations and as-built changes.
  • Collect factory and field inspection/test records, with closed-out issues.
  • Identify joint materials, glazing configurations and replaceable components.
  • Document cleaning, access, maintenance intervals and warranty responsibilities.
  • Provide a process for investigating water entry or movement-related damage.

Download the facade coordination brief to carry the responsibility matrix from design review to handover. A complete package makes both the initial installation and future maintenance easier to manage.
