A DC-DC power converter changes one direct-current supply into another regulated voltage or current. Choose a module by checking the complete operating envelope: the supply it will see, the load it must support and how its losses leave the assembled product.
This guide helps a technically informed reader compare module documentation and prepare requirements for an electronics designer. Start with the exact input source, load profile, environment and any isolation requirement. Mains power design requires its own qualified assessment.
Define normal operation and exceptional conditions
Record minimum, nominal and maximum input voltage at the module terminals, including cable drop. Separately identify startup, brownout and transient conditions with their duration. Recommended operating limits describe intended service; absolute-maximum ratings are stress limits and should not become the design target.
On a narrow screen, scroll the table sideways. Keyboard users can focus the table region and use the arrow keys.
| Field | Required evidence | Design question |
|---|---|---|
| Input | Operating range, startup/undervoltage behavior and transient limits | Does the actual source remain within the documented envelope? |
| Output | Voltage accuracy, current, load steps and permitted capacitance | Will startup and peak demand stay within acceptable voltage limits? |
| Isolation | Functional or safety purpose, working voltage and approvals | Does the complete application meet the intended isolation requirement? |
| Noise and efficiency | Ripple test method and efficiency across input and load | Are published curves representative of the actual operating points? |
| Thermal and protection | Derating curves, airflow/baseplate conditions and fault behavior | Can the assembly sustain the load and recover as required? |

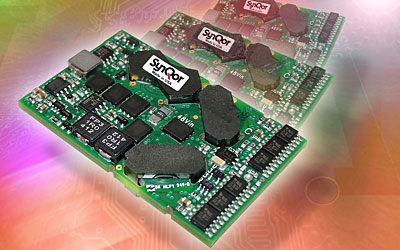

Use SynQor’s Guidelines for Testing DC-DC Converters as an example of why test setup matters when assessing a module. Select the exact ordering code, options and current data-sheet revision before using specifications. Record each important limit together with the conditions under which it applies.
Calculate power and heat at the chosen point
Fictional operating point: a load needs 5 V at 8 A, or 40 W. If the selected converter delivers 90% efficiency at that input, load and temperature, input power is 40 ÷ 0.90 = approximately 44.44 W. Converter loss is approximately 4.44 W. At a 24 V input, average input current is approximately 1.85 A.
At 85% efficiency under a different stated condition, the same output needs about 47.06 W input and produces 7.06 W loss. That difference can materially change thermal design.
These figures exclude upstream and downstream losses and do not establish startup or peak input current. Use efficiency at the actual operating point. A headline peak efficiency can occur at a different load and input voltage.
Texas Instruments’ TPSM53604 data sheet is another example: its characteristic plots show performance under stated conditions. Consult the matching device documentation when interpreting a curve; transferring a curve between products is unsupported.
Read the derating curve as a set of conditions
Derating describes how allowable output changes with conditions such as ambient temperature, airflow, orientation, heat sinking or baseplate temperature. A current rating demonstrated in moving air does not establish the same output in a sealed enclosure.
Record the exact cooling condition beside each proposed operating point. Have the designer check losses, thermal paths and temperature limits in the assembled product, including neighboring heat sources and credible worst-case operation. A heat sink drawing or a calculation using an unrelated thermal-resistance value leaves important boundary conditions unresolved.
Also inspect fault behavior. Current limiting, hiccup restart, latch-off and thermal shutdown produce different effects on a load. Protection features handle specified abnormal conditions; repeated trips during normal service indicate an unresolved design or operating problem.
Validate the complete supply and load
SynQor’s output-voltage ripple measurement note explains how the measurement setup affects the observed waveform. Compare the data sheet’s setup with the actual requirement: bandwidth, probe arrangement and local capacitors affect what a number means. Check required input filtering and permitted output capacitance. A module’s stable standalone test does not prove stability with every source filter and dynamic load.
Prepare acceptance criteria for startup, steady-state regulation, load changes, temperature and fault recovery. Record the exact module revision, board layout, supply, load, instruments and environmental conditions. A qualified designer should choose suitable measurement methods and confirm that the complete product meets its applicable requirements.
Use the GNSS module integration guide for an example of a sensitive downstream load whose performance depends on its power environment. For AC charger and travel questions, the separate travel power compatibility guide addresses a different equipment decision.
DC-DC converter requirements and verification record
DC-DC converter requirements and verification record — plain-text download. Save a copy and fill it in with your own information. The file includes instructions, assumptions and references so it can be used independently.
