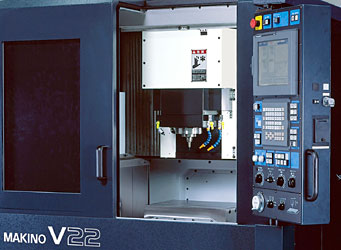

Choose a vertical machining center by the parts it must repeatedly produce. The useful comparison joins part geometry and material to workholding, tools, spindle behavior, measurement, chip handling, and the complete production cycle.
This guide helps job-shop owners and manufacturing engineers prepare a machine requirements brief and an acceptance-cut plan. Gather representative drawings, material specifications, production quantities, current cycle records, and inspection requirements. Keep the drawing revision fixed throughout the comparison.
Define a representative part family
Select parts that expose different demands: the largest fixture, deepest feature, smallest tool, tightest geometric requirement, most difficult material, and most frequent changeover. A demonstration part that is easy for every candidate provides little evidence about the limiting job.
On a narrow screen, scroll the table horizontally. Keyboard users can focus it and use the arrow keys.
| Part or production need | Ask the supplier to demonstrate | Evidence to retain |
|---|---|---|
| Large or tall setup | Usable tool and workholding access through the complete motion sequence. | Fixture model, tool lengths, clearances, loading access, and approved configuration. |
| Heavy cutting | Available torque and power at the intended speeds and duty. | Spindle curves, tooling assumptions, and a representative cut. |
| Small tools or fine finishing | Runout, toolholding, useful speed range, and finish on the required geometry. | Tool assembly details and measured part results. |
| Tight dimensions | Behavior through warm-up, sustained production, and tool changes. | Time-stamped inspection results with thermal and operating conditions. |
| Frequent changeovers | Setup, program loading, probing, first-part inspection, and restart. | A complete changeover observation, including operator work. |
| Extended production | Tool capacity, chip removal, coolant management, access, and service tasks. | Cycle observations and maintenance requirements. |
A manufacturer's specification page, such as the Haas VF-2 specification listing, separates travel, spindle, table, tooling, and utility information. Read those categories together and use the exact quoted configuration. Options and installed accessories can change the practical envelope.
Check the complete assembled setup
Model the stock, vise or fixture, clamps, toolholder, cutting tool, probe, and any rotary axis. Include loading and tool-change positions as well as cutting positions. Verify spindle-nose-to-table limits, maximum load, and permitted accessory arrangements in the machine documentation.
The Haas Compact Mill operation supplement gives a concrete example of accessory position and clearance limits. Those restrictions belong to that machine, but they illustrate why a rotary table's physical fit and full useful motion are separate checks.
For spindle selection, request continuous and short-duration power and torque curves at the speeds your tools need. Maximum RPM is especially relevant to small cutters, while substantial low-speed torque can matter for other operations. Document toolholder interface, assembly limits, coolant requirements, and the supplier's proposed cutting conditions rather than applying a generic speed rule.
Design the acceptance cut around a decision
Agree on material, drawing revision, stock preparation, fixtures, tools, program revision, operating conditions, and inspection method. Identify the features to measure, their tolerances, the measurement equipment, and the acceptance rule. Include the required production duration and how many parts must be evaluated.
Geometric machine checks and positioning specifications help characterize a machine; a finished part also reflects tooling, workholding, material, heat, and programming. Preserve both kinds of evidence where relevant. Have a qualified metrology reviewer assess whether the inspection method can support the drawing requirements.
Observe the machine over time
Record ambient conditions, manufacturer-prescribed warm-up, elapsed production time, coolant condition, and tool changes with the inspection results. A short demonstration may miss drift that appears during a longer run. Haas's mill accuracy troubleshooting guide specifically addresses thermal growth and structured evidence collection.
If a feature changes through the run, keep the measurements in time order. Check the measuring method and part temperature alongside machine conditions. Avoid adjusting offsets repeatedly without recording them; otherwise the acceptance record may hide how much intervention the process required.
A useful report says which features met requirements, under which conditions, and with what operator intervention. If a candidate fails a requirement, identify whether the limitation is machine capacity, setup, tooling, measurement, or an unresolved cause before comparing a revised proposal.
Include the work around the machine
Budget floor and service access, delivery route, foundation requirements, power, compressed air, coolant handling, chip removal, training, postprocessor support, toolholders, workholding, and inspection equipment. Ask how maintenance is performed with the proposed enclosure and shop layout.
Preserve the accepted configuration, option list, parameter and program backups, service contacts, and test report. Revisit the capacity assumptions when part families, materials, fixtures, or production schedules change. Product lifecycle management helps keep the evaluated drawing and subsequent manufacturing changes connected.
Use one brief for every candidate
Download the VMC requirements and acceptance record. Complete the same part-family and cycle fields for each proposal. Use the grinding investigation guide when evaluating a separate precision-finishing process.
