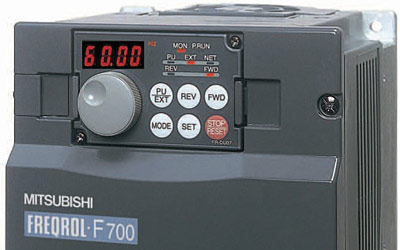

A variable frequency drive adjusts the electrical supply to a compatible AC motor so its speed can follow the process. A useful selection begins with the load: what must move, how much force it needs, and how that requirement changes through the working day.

This guide helps maintenance engineers and project owners assemble a requirements brief, compare proposals, and define acceptance evidence. Have the motor nameplate, equipment documentation, operating schedule, and a description of the existing control method available. Electrical design, installation, and commissioning belong with qualified personnel working to the actual drive and machine documentation.

Start with the work the motor performs

For a centrifugal fan or pump, reducing speed can reduce the power required by the load substantially. A conveyor that must keep moving a heavy product may need significant torque even at low speed. These differences change both the drive duty and the energy case. The Department of Energy's part-load efficiency guide distinguishes variable-torque and constant-torque applications and emphasizes the operating duty cycle.

On a narrow screen, scroll the table horizontally. Keyboard users can focus it and use the arrow keys.

Questions that establish the application
Load or behaviorInformation to collectWhy it changes the selection
Centrifugal pump or fanRequired flow, pressure, system curve, minimum process flow, and hours at each operating point.The process and system determine how far speed can fall while still doing useful work.
Conveyor, mixer, or other torque demandStarting load, running torque, speed range, acceleration, and overload duration.Low speed can still require high current and adequate motor cooling.
Rapid stopping or an overhauling loadInertia, stopping time, holding needs, and energy returned by the mechanism.Braking and regeneration require deliberate system design.
Several motors or a bypass arrangementWhich motors can run together, their protection, switching sequence, and required fallback behavior.A single-motor selection rule does not describe the complete installation.

Describe the process limit in its own units: a minimum flow, permitted line speed, or required mixing condition. A percentage on a keypad is useful only when its effect on the process is understood. DOE's motor and drive systems sourcebook treats the motor, transmission, controls, and driven equipment as one system.

Turn the nameplate into a selection brief

Record supply voltage and phase, motor rated current, power, frequency, speed, motor type, insulation information, and existing protection. Give the supplier the nameplate photograph and the exact motor model. Ask for the proposed drive's continuous output current and overload capability at your duty, ambient temperature, altitude, enclosure, and switching conditions. A catalog horsepower label is only one part of this comparison.

Include cable route and length, heat and contamination around the enclosure, available cooling, communications, analog signals, operator controls, and spare-part support. Ask who owns each interface and which parameter file will become the approved record. A production machine also needs a defined response to lost commands, failed sensors, power restoration, and a drive trip.

Motor insulation stress, bearing currents, and cable effects deserve explicit review. DOE's motor–drive interaction guide explains why the motor and cable arrangement can change the required mitigation. Have the drive and motor suppliers establish applicable filters, cable requirements, grounding, and low-speed thermal limits for the actual combination.

Calculate savings from a duty cycle

Keep electrical input kW separate from shaft power and accumulated kWh. Collect representative operating points and record production conditions alongside power. The familiar cubic speed relationship applies to an idealized variable-torque situation; static head, equipment efficiency, drive losses, and operating restrictions can materially change the result. Use measured or supplier-supported system values for a purchasing decision.

Make commissioning prove the required behavior

Agree on an acceptance sheet before ordering. For each important operating point, list the required process output, permitted variation, motor and drive limits, measurement method, test duration, and reviewer. Then include startup, normal stopping, command loss, sensor failure, trip indication, and restoration tests within an approved commissioning plan.

For a pump project, a useful record joins command speed, actual process flow and pressure, input power, motor operating condition, and alarms. If power falls because the pump delivers too little flow, the energy target has displaced the production requirement. Investigate the mismatch and repeat the comparison with equivalent service.

Keep the final parameter backup, firmware identity, motor data, drawings, and acceptance results together. Revisit the brief when the motor, driven equipment, cable route, operating schedule, or required speed range changes. The predictive asset monitoring guide explains how later measurements become reviewed maintenance decisions.

Use a requirements record

Download the VFD selection and energy-comparison record. Fill the equipment and duty-cycle sections before requesting proposals, then complete the acceptance fields with the responsible engineers. The record includes the fictional calculation above so the arithmetic can be checked independently.
