Nanofiber describes a material structure, not a complete filter specification. Fine fibers can help a filter capture contamination while managing flow resistance, but the useful result depends on the whole element, its housing, the operating conditions and the way performance was tested.
For engine equipment, start by separating air filtration from lubricant filtration. They handle different fluids and operating conditions. A claim about a truck’s air filter cannot simply be transferred to its oil filter, even when both products use synthetic fibers.
A fine-fiber layer is part of a larger structure
A filter element may combine a support material, a fine-fiber layer, pleats, protective structures and seals. The support gives the assembly mechanical strength; the filtering layers and element geometry determine how it collects contamination while allowing the working fluid through.

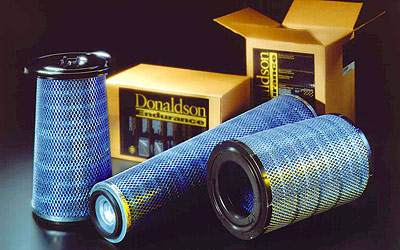

As one manufacturer example, Donaldson’s description of Ultra-Web air-filter media identifies a fine-fiber web that collects dust on the surface of a supporting medium. That explains the design approach, not the performance of every product marketed as nanofiber.
Do not read a fiber diameter as a particle-size cutoff. The thickness of a strand does not state which particles a finished filter captures, at what efficiency, or under which conditions. Nor does a material name establish the quality of the element’s seals. Contaminated air that goes around a filter has bypassed the media altogether.
The illustration above deliberately enlarges the media structure. It is not a microscope image, a pore-size measurement or evidence that all particles of a particular size will be stopped.
Compare results produced by suitable tests
The public scope of ISO 5011:2025 for engine and compressor inlet air cleaners identifies airflow restriction or differential pressure, dust collection efficiency and dust capacity among the characteristics tested. Those are related measurements, not interchangeable labels for “better.” Ask which element and housing were tested, at what flow, with which contaminant and ending condition.
For full-flow engine oil filters, ISO 4548-12:2017 describes a multi-pass particle-counting test addressing contaminant capacity, removal characteristics and differential pressure. Its published scope is limited to steady-state conditions and does not cover flow-rate fluctuations. These public summaries establish the tests’ scope; they do not reproduce the full standards or certify a particular product.
On a narrow screen, scroll the table horizontally. Keyboard users can focus the table region and use the arrow keys.
| Claim or metric | Ask for | Do not infer |
|---|---|---|
| Nanofiber or synthetic media | Finished element identification and tested performance. | A universal capture size or a longer service interval. |
| Efficiency percentage | Test method, particle-size information where applicable, and whether the result is initial, cumulative, mass-based or count-based. | That unlike percentages can be compared directly. |
| Low restriction | Flow rate, clean or loaded condition, test configuration and units. | That a low reading alone demonstrates good filtration. |
| Dust or contaminant capacity | Contaminant used and the test’s specified ending condition. | A fixed number of miles or engine hours in every environment. |
| Longer service life | Applicable equipment, duty cycle, service criteria and warranty terms. | Permission to extend an engine’s oil-change interval. |
Keep the test report with the comparison. A data sheet that supplies only an efficiency percentage leaves basic questions unanswered. An air-cleaner mass-efficiency result and an oil-filter particle-count result may both be useful, but they answer different questions.
Worked example: small efficiency differences can hide larger differences in passage
It does not establish ten times the engine life, a guaranteed wear reduction or how much of any particular particle size passed. It also says nothing about restriction, capacity or damage to a seal. Those require separate evidence.
Download the filter-specification comparison record and worked example. Record both favorable and unfavorable results. Two filters may trade lower restriction against other performance characteristics, or differ in housing fit and maintenance requirements even when their laboratory results look similar.
Service life depends on the application
A filter gradually loads with contamination. For suitable heavy-duty air systems, restriction monitoring is part of determining the service point. Donaldson’s guidance on servicing by restriction explains why appearance alone can be misleading and why repeatedly opening the housing can introduce contamination or installation errors.
Follow the engine and filter-system instructions for that application, including any time limit, restriction limit or severe-duty requirement. Do not apply a heavy-duty restriction-based approach to an unrelated vehicle whose maintenance instructions specify a different method.
Oil filters have a different operating environment. Temperature and oil viscosity influence flow resistance, and bypass arrangements depend on the engine and filter design. Donaldson’s comparison of full-flow and bypass lubricant filtration also distinguishes a bypass valve, which can route oil around a restricted element, from a separate bypass filter that treats part of the circulating oil. Those are different meanings of “bypass.” A finer medium is not automatically a suitable replacement. Verify the full application specification, including required valve features, rather than selecting a filter by thread size and a favorable efficiency claim.
Engine oil condition and filter condition are also separate matters. A filter does not replenish depleted lubricant additives or make the oil suitable indefinitely. Extending a lubricant service interval requires the engine maker’s applicable guidance and any specified monitoring; it does not follow from a “long-life” filter label.
Buy an application match, then evaluate the evidence
Begin with the engine or equipment identification and the approved replacement application. Confirm dimensions, sealing design and service instructions. Then compare test results using compatible methods and conditions. If the intended benefit is reduced downtime, include labor, accessibility, spare availability and the consequences of a mistaken installation in the evaluation.
Ask the supplier to distinguish laboratory results, field results and warranty promises. A field result from a dusty mining route is useful evidence about that setting; it is not automatically a prediction for a highway fleet. Keep uncertainty visible rather than filling missing fields with assumptions.
For the installation and maintenance side of the decision, see engine intake filters: fit, filtration and performance claims. Understanding the media is valuable, but the filter still has to work as part of the actual engine system.
