A venting picture window combines a large, relatively uninterrupted view with an operable sash. Compare it with a fixed picture window flanked by casements or another operable arrangement. The best fit depends on airflow, operation, cleaning access and the performance of the exact unit.
Bring the opening dimensions, room layout, exterior access conditions and a description of who will operate the window. Include furniture, counters and window treatments that might obstruct the controls.
Start with the actual opening mechanism

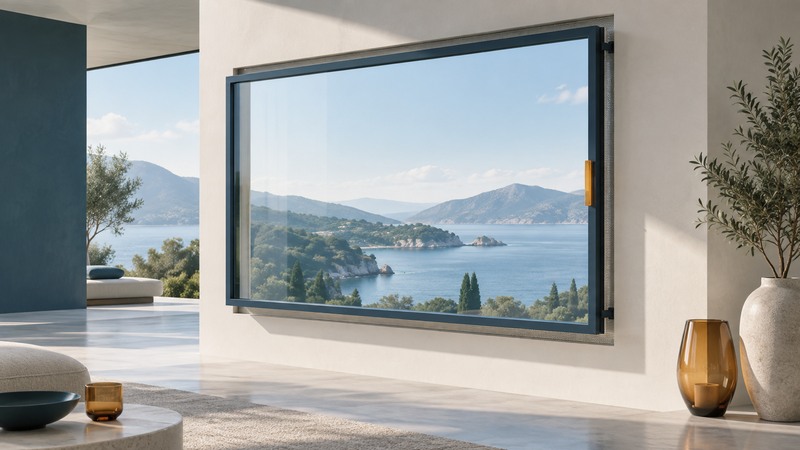

Picture windows are commonly fixed. A documented exception is the Marvin Ultimate Venting Picture window, whose sash opens evenly around its perimeter and uses a hidden screen system. That is a specific product design, not evidence that all large picture windows ventilate in the same way.
A narrow perimeter opening creates a different air path from a widely opened casement. Ask the supplier to demonstrate the exact unit and provide the opening dimensions. Glass area alone is a poor basis for estimating ventilation. Airflow also depends on wind, pressure differences, other openings and the room's arrangement.
The manufacturer's technical resource page links architectural details, sizes and installation information. Confirm that the quote, detail and operating instructions all refer to the same model, size and configuration.
Compare complete window arrangements
| Arrangement | Reason to consider it | What to check in person or in the drawings |
|---|---|---|
| Venting picture unit | A large central view with perimeter ventilation. | Control reach, opening gap, screen access and cleaning method. |
| Fixed picture plus casements | Separate the large view from dedicated operable units. | Added frame lines, swing clearance, handles and the rated combined assembly. |
| Fixed picture plus awning unit | Put the operable area above or below the main view. | Reach or motor access, exterior projection and maintenance access. |
| Fixed picture alone | A view opening where ventilation is provided elsewhere. | The room's actual fresh-air provision and access for exterior cleaning. |
Use drawings at the same overall opening size. Compare visible glass, frame divisions and usable openings. A combination of individually rated units may need a specific joining and installation detail; ask for the configuration the supplier will actually deliver.
Plan ventilation as a room function
Describe when the window will be used: mild evenings, occasional airing or another defined situation. Identify where air can enter and leave. A single opening does not establish a reliable cross-ventilation path by itself.
EPA's indoor-air guidance discusses source control, outdoor-air ventilation and air cleaning as distinct strategies. Opening a window can increase outdoor air when conditions permit, while exhaust and whole-home ventilation still need their own plan.
Ask what the screen is designed to do. Treat insect screening and particle filtration as separate product claims. If a vendor advertises filtration, sensors or automatic operation, obtain the exact component specification, maintenance needs and supported behavior. Include outdoor smoke, pollen, rain, security and noise in the operating plan.
Request ratings for the quoted unit
Obtain U-factor, SHGC and visible transmittance for the selected size and glazing where available, using a consistent rating basis. The NFRC label guide explains these measures. Keep air, water and structural performance documentation alongside the energy data.
A product family's highest advertised performance does not establish the rating of every size and combination. Ask the supplier to identify the relevant test or certification and the limitations for the proposed installation. Have the project designer or local authority resolve any required emergency-opening, accessibility or safety-glazing conditions.
Use a showroom visit to answer the hard questions
- Operate and lock the unit using the intended reach and hand position.
- Check how screens are removed, cleaned and replaced.
- Confirm how both sides of the glass will be cleaned after installation.
- Show the supplier nearby furnishings and exterior obstructions.
- Record warranty, service parts and installation responsibilities.
Keep the agreed drawings and operating documents with the quote. They turn a visually appealing window into a choice that can be installed, used and maintained as intended.
