Transistor manufacturing depends on the materials around the active device as well as the channel itself. Dielectric films can separate neighboring structures, fill narrow spaces and affect mechanical stress. Understanding their role starts with the location of the film, the geometry it must fill and the device result being measured.
Locate the film in the device
Shallow trench isolation (STI) uses dielectric-filled trenches to help electrically isolate device regions. Pre-metal dielectric (PMD) occupies a different part of the structure, around devices before the first metal interconnection. A process suitable for one location must still be evaluated against the geometry, interfaces and thermal history of the other.

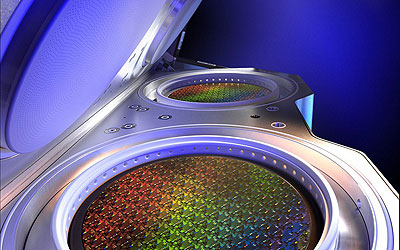

Applied Materials describes its HARP process as thermal chemical vapor deposition for demanding gap-fill applications including STI and PMD. The product description is a concrete example of a process role, not a universal recipe for every transistor architecture.
When reading a process claim, sketch the relevant cross-section and label the incoming surface, film location and later operations. Keep historical planar-device examples distinct from FinFET, nanosheet and other structures whose geometry and integration sequence differ.
Explain why a filled-looking surface is insufficient
A narrow, deep opening can be difficult to fill throughout its depth. A closed top surface can conceal an internal seam or void. Review representative cross-sections and the method used to sample them, then relate those observations to the electrical or reliability requirement. State feature width and depth separately before quoting their aspect ratio.
On narrow screens, scroll the table horizontally. Keyboard users can focus it and use the arrow keys.
| Question | Evidence to request | Interpretation limit |
|---|---|---|
| What geometry was tested? | Width, depth, profile and pattern density | One shape or location may not represent the product. |
| What remains inside? | Cross-section method, images and sampling plan | An image supports its examined locations. |
| What happened to interfaces? | Incoming surface, thermal history and interface checks | A filled volume alone does not establish interface quality. |
| How did devices behave? | Defined electrical and reliability comparisons | A process metric needs a link to the intended device result. |
Include the permitted thermal budget and compatibility with existing materials. “Thermal” identifies an energy route; it does not establish compatibility with every completed layer. Review the actual process conditions with the integration owner.
Distinguish stress from measured strain
Stress describes mechanical loading within a material; strain describes deformation. Engineering the strain in a channel can change carrier transport, while unwanted mechanical effects can damage a structure. NIST's strain-measurement work discusses both performance-oriented strain and adverse effects such as cracking or debonding, along with the need for quantitative measurement.
A film stress value and local channel strain answer different questions. Preserve the measurement location, technique, calibration and geometry. The effect depends on material, orientation and device structure; a beneficial result for one transistor condition should remain scoped to that condition.
Read a performance claim with its denominator
Compare distributions, sample counts and wafer locations rather than only the two medians. Define controls and repeat the result across the required process range. Use the parametric-testing guide to retain the stimulus and extraction method.
Build a chain from process to device
A useful report connects process conditions to film geometry, film/interface measurements and electrical outcomes. For historical context, the July 2004 HARP announcement illustrates how gap fill and strain engineering were presented together during planar-device scaling. Its node and performance claims belong to that period and reported configuration.
For a present project, write the claim narrowly enough to test. Record which result supports it and which alternatives remain plausible. The low-k dielectric guide addresses interconnect-film tradeoffs; the defect-review guide helps connect observed structures with an investigated cause. Keep process changes subject to the qualified fabrication route.
Use the working record
Download the editable working record. It includes the task-specific fields, instructions, fictional example and source references needed to preserve the evidence behind a decision. Complete it with the people responsible for the actual process.
