The Cell Broadband Engine, developed by IBM, Sony, and Toshiba, is a useful example of heterogeneous computing: different processing elements handle different parts of a program. Understanding Cell helps explain why data movement, local memory, and software organization can matter as much as arithmetic throughput. Its central lesson is to evaluate the whole pipeline from input to verified result.
A coordinated set of different elements
IBM’s Cell design and implementation paper describes the joint design effort and the balance among performance, area, and power. The architecture made high-speed data movement central to its intended workloads.

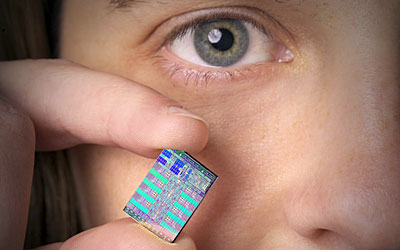

The first Cell implementation combined a Power Processing Element, or PPE, with eight Synergistic Processor Elements, or SPEs. An SPE combines a processing unit with a memory-flow controller. Its processing unit works from a 256 KiB local store; transfers move instructions and data between that store and main memory. The local store holds code and working data, so software must budget both. The IBM authors’ Cell system-software paper, published in 2007 and hosted by National Taiwan University, explains this arrangement and the ability to overlap transfers with computation.
These are architecture-level descriptions. Product configurations and resources available to applications must be checked separately. Avoid using the count of elements in a chip as a guaranteed count of unrestricted workers in every system.
Fit a small working set
Invented teaching example: imagine a task that adds two arrays of 4,096 single-precision values and produces one output array. Assume each value occupies four bytes. Each array needs 16 KiB, so two inputs and one output need 48 KiB.
To double-buffer those three arrays, reserve two sets of buffers: 96 KiB. If this hypothetical program reserves another 64 KiB for code and other fixed contents, the total is 160 KiB, leaving 96 KiB of the 256 KiB local store for stack, additional data, alignment, and other requirements. The 64 KiB reservation is an invented assumption, not a measured compiler output.
On a narrow screen, scroll the table sideways. Keyboard: focus the table and use the arrow keys.
| Item | Calculation | Space |
|---|---|---|
| One array | 4,096 values × 4 bytes | 16 KiB |
| One set of two inputs and one output | 3 × 16 KiB | 48 KiB |
| Two buffer sets | 2 × 48 KiB | 96 KiB |
| Assumed code and fixed contents | Teaching assumption | 64 KiB |
| Remaining space | 256 − 96 − 64 KiB | 96 KiB |
This budget shows why a larger dataset must be divided into pieces. A real implementation also needs transfer alignment, completion tracking, correct handling of the final partial piece, and a measured code and stack budget. A buffer becomes reusable only after the operations that depend on its contents have completed.
Overlap helps when the work permits it
Double buffering lets a program prepare one piece while working on another. It requires enough storage and independent work to keep the stages active. The programming structure must preserve the dependencies between input arrival, computation, and output completion.
Separate illustrative timing model: suppose input transfer takes 2 ms, computation takes 5 ms, and output transfer takes 1 ms per piece. Fully sequential processing takes 8 ms. If transfers can overlap with computation and resource sharing permits the schedule, an ideal steady-state interval is 5 ms, an 8 ÷ 5 = 1.6× throughput improvement. Startup, drain time, synchronization, contention, and small-piece overhead reduce the practical gain. These timings are chosen to explain a pipeline; they are not Cell benchmark results.
For a real comparison, report the input size, precision, element count actually used, transfer costs, software version, and output check. Include the entire operation when judging whether acceleration helps the application.
Read its history at the correct scale
Roadrunner provides a system-level example of heterogeneous design. The Los Alamos authors’ 2008 architecture paper describes a hybrid supercomputer combining IBM PowerXCell 8i processors with AMD Opteron cores and reports sustained Linpack performance above one petaflop per second. That result belongs to a complete configured system and benchmark, distinct from a single Cell chip’s arithmetic specification.
The enduring comparison is between useful computation and the cost of feeding it. Identify parallel work, budget nearby memory, arrange transfers, preserve dependencies, and verify the answer. The cluster-computing guide extends that reasoning across machines, while the interconnect guide examines the communication costs between them.
