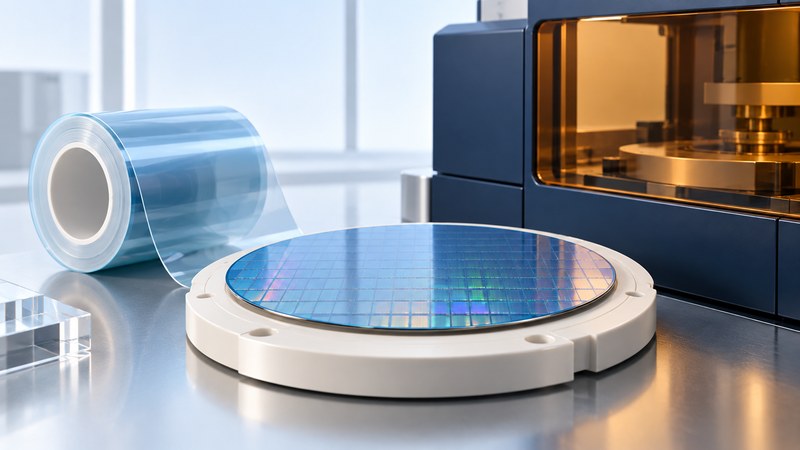

Back-grinding protective tape must work with the wafer surface, thinning process, support equipment and release route. Prepare an evaluation brief around those interfaces. Qualify the complete route with measured wafers and agreed criteria for damage, contamination and the finished condition.
Specify the tape's role in this route
Identify the wafer material, diameter, starting and target thickness, device-side materials and surface topography. Include bumps, steps or structures that affect contact. Record incoming bow, warp and damage using the site's methods. These inputs help a supplier propose a relevant grade and expose differences from a previous qualification.
Mitsui Chemicals ICT Materia describes ICROS tape constructions with layers serving different functions and variations for wafer and process requirements. Ask for the actual candidate's construction and qualified use conditions. A family name leaves adhesive, base-film and application details unresolved.
Keep back-grinding protection distinct from dicing support or other temporary wafer-bonding functions. A supplier may offer several products across the route; confirm the exact role and any transfer between supports. Have the responsible process engineer identify the allowed handling sequence for the thinned wafer.
Review compatibility at each handoff
On a narrow screen, scroll the table horizontally. Keyboard users can focus it and use the arrow keys.
| Interface | Question for the supplier and process owner | Evidence to retain |
|---|---|---|
| Application | Does the grade accommodate the defined topography and equipment? | Application window, contact observations and defects |
| Grinding and cleaning | Does the supported assembly tolerate the qualified process? | Actual conditions, edge condition and thickness results |
| Release | What mechanism and equipment are required? | Grade-specific instructions and completed release record |
| Downstream use | Are contamination and device requirements met? | Specified inspection, analysis and relevant electrical results |
Nitto's ELEP HOLDER lineup includes low-adhesion and UV-release approaches. Obtain the exact grade's application and release instructions, including compatible equipment and measurement conditions. A UV-release label alone provides insufficient information to set exposure.
Where UV exposure is part of the qualified process, keep the equipment and radiometry context with the actual record. The related UV measurement guide explains why spectral response and geometry matter. Tape selection and recipe authorization still belong to the material and equipment qualification.
Design a trial that can explain failures
Define the control route, candidate grade, wafer population, sampling locations and criteria before processing. Keep incoming condition and process history linked to each wafer. Include relevant wafer lots or topography variants in the qualification plan; a successful flat monitor wafer may leave the production surface untested.
Compare pre- and post-process observations at corresponding locations. Record edge damage, apparent residue, particles and thickness using specified methods and detection limits. If chemical contamination matters, define the analytical test and acceptance level with the responsible specialists. Visual cleanliness supports only the visual criterion.
When counting failures, retain both the number of unique affected wafers and the types of defect observed on each. This avoids counting one wafer twice in an overall yield figure while preserving useful defect information. Investigate when the defect first appeared before attributing it to the tape.
Interpret the measurement at its actual scope
Fictional thickness map: the minimum and maximum measured values at the specified locations on one wafer are 99 and 103 µm. The sampled range is 4 µm.
Retain the map, sampling pattern, instrument and measurement uncertainty. Unsampled locations remain outside this observation. The process owner evaluates the result under the agreed thickness-uniformity definition; separate release, contamination and damage criteria also need results.
If a candidate fails, first check material identity, storage, incoming wafer condition and compliance with the approved route. Review changes with the tape and equipment suppliers before another controlled trial. Avoid improvising removal or exposure settings on fragile production wafers.
Release a documented combination of tape grade, wafer family, equipment and process window. Define review triggers for tape formulation, device topography, thinning target or downstream requirements. For how qualified measurements feed process decisions, see advanced process and equipment control.
Use the working record
Download the editable wafer tape qualification. Save a copy, complete the actual requirements and evidence fields, and review open issues with the responsible owner. The plain-text record includes instructions, units where needed, the fictional example, and source references.
