An ozone map becomes useful when its legend, date and geographic coverage stay attached. A dramatic color alone leaves the quantity unclear. This guide helps students and readers interpret a map and write a caption that accurately describes its evidence.
Start with an actual observation product from NASA Ozone Watch. Keep the original source link and select the date or time series relevant to your question. Use the illustration above for orientation and the scientific product for measurements.
Identify what the image measures
NASA’s Dobson-unit explanation describes total-column ozone: the amount above a location, expressed as the thickness it would occupy if compressed to standard conditions of 0°C and one atmosphere. One Dobson unit (DU) corresponds to 0.01 millimeter under those conditions.
Check whether your product shows total-column ozone, ozone at a particular altitude, an anomaly or a derived area statistic. A surface air-quality ozone map concerns exposure near the ground and needs its own units and interpretation. Record the quantity before comparing colors.
Read a scientific map in a fixed order
On a narrow screen, scroll the table sideways. Keyboard users can focus it and use the arrow keys.
| Read this | Record it | Why it matters |
|---|---|---|
| Product and instrument | Provider, quantity, sensor or combined product. | Different products can answer different questions. |
| Date and coverage | Observation day, averaging period and mapped region. | Season and geography affect comparison. |
| Legend | Units, scale endpoints and missing-data marks. | Colors need the supplied numerical meaning. |
| Processing | Resolution, interpolation and stated qualifications. | A smooth image can include processing beyond individual observations. |
| Comparison | Same product, season and scale where possible. | Consistent comparisons support clearer conclusions. |
Save the legend along with the map. When a provider changes a product or fills a gap, keep that explanation with any comparison. Blank or masked regions should retain the provider’s stated meaning.

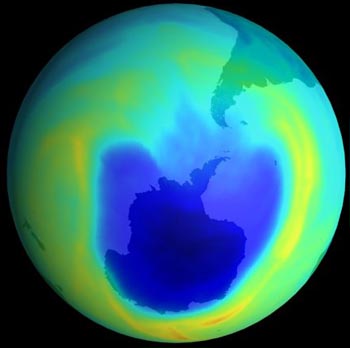

Understand the Antarctic ozone-hole measure
NASA’s Antarctic ozone-hole explanation describes an area defined using total-column ozone below 220 DU. The threshold supports a specific monitoring convention. Read a displayed area together with its date and units, usually square kilometers.
Antarctic depletion is strongly seasonal. Cold polar conditions, reactions involving chlorine and bromine, and returning sunlight help explain the spring pattern. The ozone-hole area, the minimum column value and an average over a region describe different aspects of that pattern.
Put recovery claims on the right timescale
The UN-backed 2022 scientific assessment, summarized in January 2023 reported recovery progress associated with controls on ozone-depleting substances. Its future recovery estimates depend on continued policies and refer to particular regions and reference levels.
For a recovery claim, find a multiyear assessment or a consistently defined time series. Record the assessed period, uncertainty and assumptions. One daily map answers a daily spatial question; long-term recovery needs evidence across years and an explanation of natural variability.
Write a caption with four parts: what quantity is shown, where and when, the source and units, and the limited conclusion you draw. For example: “Total-column ozone over [region] on [date], in DU, from [product]. The map shows [specific spatial feature]; the associated time series supplies the seasonal comparison.”
For temperature charts, the global-warming evidence guide applies a similar method to baselines, anomalies and time windows.
Ozone-map reading record
Ozone-map reading record — plain-text download. Save a copy and fill it in with your own information. It includes instructions, example assumptions and source references.
