A mobile RAM specification describes several different things: how much data a device holds, how many bits move in one transfer, how quickly transfers occur, and how the silicon is packaged. Read those fields separately before drawing a conclusion about a phone's speed.

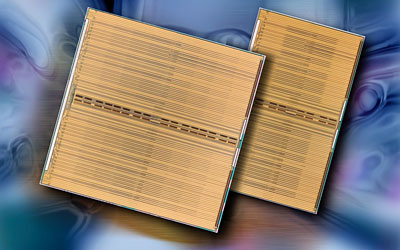

Early Mobile RAM announcements, including Elpida's 2005 work on stackable memory, addressed the space constraints of compact handsets. The lasting lesson is how to interpret a component description. A density figure, a bus width, and a package drawing answer different engineering questions.
Convert density before comparing capacities
Memory-chip density is often expressed in bits, while software and phone specifications commonly discuss bytes. There are eight bits in a byte. The NIST explanation of binary prefixes distinguishes decimal megabytes, MB, from binary mebibytes, MiB: one MiB contains 1,048,576 bytes.
Worked example: the same density, two organizations
Assume a fictional datasheet explicitly defines its array as 16 × 220 words × 16 bits. Its density is 268,435,456 bits. Dividing by eight gives 33,554,432 bytes, or 32 MiB. An array of 8 × 220 words × 32 bits has the same capacity, presented through a wider data interface.
This example uses binary array counts deliberately. Check the manufacturer's definition when a shorthand such as “256 Mb” appears; write down both the bit count and the byte conversion so a unit change cannot masquerade as a capacity increase.
On a multichip part, identify which density belongs to RAM and which belongs to flash storage. Combining their numbers into one “memory total” hides the functions the device actually provides. For the user-facing distinction, see RAM, storage, and memory in modern mobile devices.
Combine interface width with transfer rate
An x16 interface moves 16 data bits in a transfer; x32 moves 32. A quoted transfer rate describes how often transfers occur. DDR means double data rate: data transfers use both clock edges, as explained in Micron's discussion of DDR operation. Keep the clock frequency and the transfer rate in separate fields.
| Interface | Assumed rate | Calculation | Peak |
|---|---|---|---|
| x16 | 333 million transfers/s | 333,000,000 × 16 ÷ 8 | 666 MB/s |
| x32 | 333 million transfers/s | 333,000,000 × 32 ÷ 8 | 1,332 MB/s |
These are calculated ceilings for the stated assumptions, not measured Elpida or handset results. A datasheet rate already expressed in transfers per second has already accounted for the transfer mechanism; doubling it again would overstate the result. Sustained useful throughput also depends on command timing, refresh, access patterns, and the controller.
To compare two components, first hold the task constant. A wide interface that the host cannot use at its rated speed may offer little advantage for that system. A phone's camera, codec, processor, and storage path introduce further limits beyond the RAM interface.
Distinguish the silicon from the package

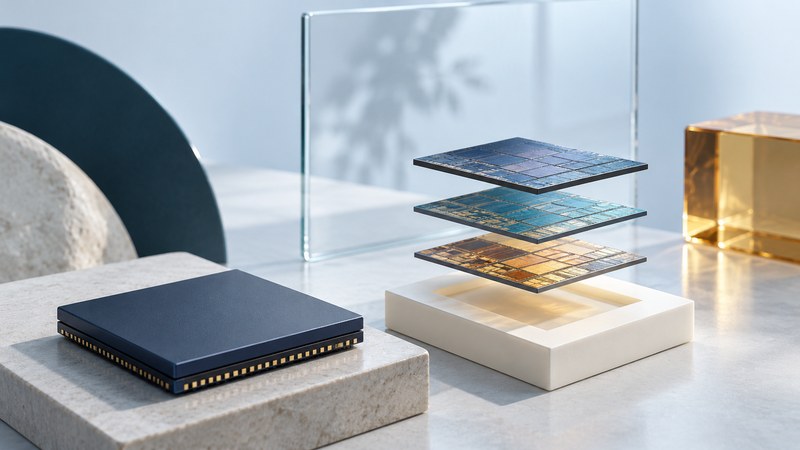

A die is an individual piece of semiconductor silicon. A package protects and connects one or more dies to a board. A multichip package brings several dies together; package-on-package describes an assembly of packages. A drawing of layers needs this vocabulary before its capacity or connection scheme can be interpreted.
Micron's legacy Elpida numbering guide (PDF copy) distinguishes Mobile RAM types and combined-memory packages. As a later concrete example, Micron's 2020 uMCP announcement describes low-power DRAM, NAND, and a controller in one package. That later design illustrates integration; it does not establish the contents of a 2005 part.
Stacking can use vertical space to reduce the board footprint. The resulting electrical interface still has to match the host. Package outline, ball assignment, supply requirements, timing, and supported organization all matter. Treat replacement or integration as a full compatibility problem, not a comparison of package dimensions.
Build a short specification record
- Identify the exact part and revision. Retain the full marking and datasheet date; family names can cover incompatible variants.
- Separate the fields. Record RAM density, flash density if present, organization, rate units, voltage conditions, and package.
- Show your arithmetic. Convert bits to bytes and calculate peak bandwidth only from explicitly defined inputs.
- Find the system evidence. Check the controller's supported configuration and a relevant workload measurement before predicting application performance.
A good reading ends with two statements: what the component specification establishes, and what still requires a system test. Keep those statements with the source document so a later part revision can be compared fairly. Continue through the Telephone hardware and technology guides.
