An infrared thermometer estimates temperature from radiation arriving at its detector. To make the reading useful, establish which surface fills its field of view, how that surface emits and reflects radiation, and whether the instrument is suited to the target and surroundings.

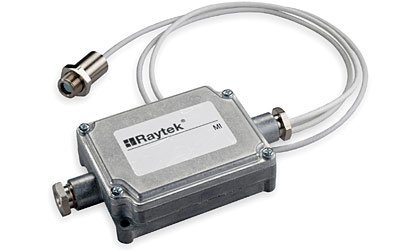

This is an industrial measurement guide for technicians checking equipment, ovens, sheet materials, and other process surfaces. Bring the instrument manual, a description of the target, and the decision the reading must support. A handheld spot reading and a permanently installed process sensor may use different optics, spectral bands, and response settings.
Define the measurement before choosing a sensor
Write the target material and surface condition, expected temperature range, smallest area of interest, accessible viewing distance, and required response time. Record whether the part moves and whether dust, steam, a window, or a protective cover lies in the optical path. Ask how much measurement error the process decision can tolerate.
On a narrow screen, scroll the table horizontally. Keyboard users can focus it and use the arrow keys.
| Specification | What it describes | What to verify |
|---|---|---|
| Target temperature range | The range the instrument can measure under stated conditions. | All expected target temperatures and the applicable accuracy specification. |
| Ambient operating limits | The environment the sensor and electronics can tolerate. | Temperature at the installed head, electronics, and cable. |
| Optics and field of view | The area contributing to a reading at a specified distance. | Target dimensions, focus, distance, and the manufacturer's spot diagram. |
| Spectral response | The infrared wavelength band sensed by the instrument. | Suitability for the material and any intervening window. |
| Response and signal processing | How quickly a change appears and how readings are averaged or held. | Part speed, dwell time, peak hold, averaging, and controller timing. |
A high allowable ambient temperature says how hot the sensor's surroundings can be. It does not define the highest measurable target temperature. Read these entries separately. The Fluke 561 manual, for example, provides model-specific optics and emissivity information; use the corresponding documentation for your actual instrument.
Make the target larger than the measurement area
The aiming laser helps point the instrument. The infrared measurement uses an area that changes with distance and the instrument's optics. Fluke's measurement guidance explains why a small target can produce a mixed reading when the field of view includes the background.
Keep the target comfortably larger than the specified measurement area and use the manufacturer's geometry when designing a fixture. Fluke's infrared calibration guide explains that a stated spot diameter contains a specified proportion of received radiation; surrounding surfaces can still matter.
Account for surface condition and reflections
Emissivity describes how effectively a surface emits thermal radiation compared with an ideal emitter at the same temperature. A polished metal surface can reflect nearby hot equipment into the sensor. Its apparent temperature may therefore depend strongly on the environment and viewing direction. Material, finish, oxidation, wavelength, and temperature all matter when selecting an emissivity value.
Begin with the manufacturer's material guidance and validate against a suitable reference under controlled conditions. Where the process permits a reference patch, its material, temperature rating, contact, equilibration, and optical properties must suit the application. Obtain approval before altering a product surface. A convenient tape or paint can introduce its own error or process problem.
For a repeated measurement, keep the surface preparation, angle, distance, emissivity setting, and surroundings consistent. If a reading changes when only the viewing angle changes, investigate reflected radiation and geometry before concluding that the process temperature moved. For a transparent or thin material, confirm that the spectral band measures the intended target. Fluke's infrared-thermometer overview describes surface measurement and optical-path limitations.
Investigate a doubtful reading in a repeatable order
- Confirm the target. Record the exact location and surface state. Check whether the field of view includes edges, gaps, or background.
- Check the instrument condition. Follow the manual for ambient acclimation and lens care. Confirm settings and calibration status.
- Check the optical path. Look for a window, contamination, steam, dust, or reflections that could change the received radiation.
- Repeat with documented geometry. Save several readings and the process state. A stable wrong reading can repeat very well.
- Compare with an appropriate reference. A contact probe and infrared sensor need to represent the same surface and time. A suitable radiation source is used for instrument calibration.
- Record the unresolved difference. Have the measurement owner decide whether the evidence supports the intended process decision.
For a moving web, log line speed and response settings with the temperature. If averaging changes between runs, the reported peaks may change even when the target behaves similarly. The continuous surface-inspection guide applies the same discipline to synchronizing images with moving material.
Keep the setup with the reading
Download the infrared measurement record. It provides fields for units, optics, surface condition, emissivity, ambient conditions, repeated readings, and reference comparison. Use it to distinguish a changed process from a changed measurement setup.
