X-Ray Diffraction: What a Pattern Can—and Cannot—Tell You - Yenra

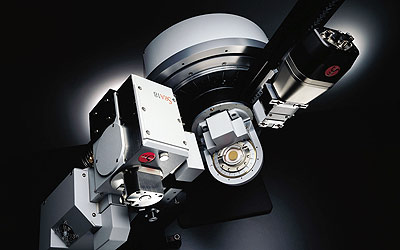

What kind of question does XRD answer?

In a crystal, repeating arrangements of atoms scatter X-rays in directions determined by their structure and the radiation wavelength. A powder measurement combines diffraction from many small crystalline regions with different orientations. The familiar result plots intensity against scattering angle, usually labeled 2θ. Single-crystal diffraction instead measures reflections from an individual crystal as its orientation changes; its data and analysis are different.

X-ray fluorescence, or XRF, detects characteristic radiation emitted by elements after excitation. It is useful for elemental analysis; XRD is particularly useful for distinguishing crystalline arrangements. Two materials can contain the same elements but have different crystal structures. The IAEA describes the elemental-analysis role of X-ray fluorescence techniques.

Before submitting a sample, write a specific request: “Which crystalline phases are consistent with this powder?” is more useful than “What is this?” If you need trace-element concentrations, particle shape, or a molecular mass, another technique may be needed alongside diffraction. Discuss preparation first: grinding, drying, heating, or pressing can alter the material you hoped to investigate.

Read position, intensity, and width separately

On a small screen, scroll the table sideways to read all columns.

Start by checking the axes and acquisition metadata. Counts, counts per second, and a trace normalized to its highest peak are different presentations. A normalized plot can make a weak signal look as tall as a strong one. Check whether background subtraction, smoothing, or a logarithmic intensity scale has changed what you see.

Look for several expected reflections, including ones that would contradict the proposed identification. A single coincident peak is weak evidence. Mixtures can produce overlapping peaks, and the absence of an obvious peak does not prove that a small amount of a phase is absent. Detection depends on the material, background, overlap, and measurement conditions; there is no universal detection percentage for every XRD experiment.

Preferred orientation means the crystallites are not represented in the assumed random proportions of orientations. It can distort intensities and therefore phase quantification. IUCr's powder diffraction course notes (PDF) discuss this problem and the value of changing sample preparation. A taller peak is not, by itself, a larger mass fraction.

Broadening also needs a model. Instrumental effects, coherent-domain size, and strain can contribute together. A coherent domain is a region that diffracts coherently; one physical particle can contain several such regions. A Scherrer estimate therefore does not automatically give the particle diameter a microscope would measure. See the IUCr treatment of Bragg peak profiles and instrumental contributions. A broad diffuse feature may be consistent with disordered material, but calling every broad feature “amorphous” skips the alternatives.

A checked Bragg-law example

This calculation yields one interplanar spacing. It does not identify a compound, determine all unit-cell dimensions, or tell you the spacing between every neighboring pair of atoms. The IUCr's introduction to structure factors and Bragg's law explains how lattice geometry and atomic arrangements enter diffraction.

Download the three-angle Bragg calculation (CSV). All rows are invented examples with the same wavelength and first-order assumption. They are independent calculations, not a simulated pattern from a named material; the extra decimal places make the arithmetic checkable, not more experimentally accurate.

What to ask for with an interpretation

Keep the original data, radiation wavelength, scan range, acquisition settings, sample preparation, reference patterns or structural models, and analysis software version. For a fitted result, ask to see the observed pattern, calculated pattern, and residual difference. A small fit statistic can coexist with an incomplete or inappropriate model.

Quantitative phase analysis needs suitable structural models and corrections. A result normalized over the modeled crystalline phases may leave an unmeasured amorphous fraction outside that total. Ask what the reported percentages include and whether an internal standard or another validated approach was used when absolute fractions matter.

The 2025 IUCr review Powder diffraction data beyond the pattern explains why raw data and experimental context matter for reuse. A useful report states the question answered, the competing interpretations considered, and the measurement's limits. Automated matching can suggest candidates; the defensible conclusion comes from checking those candidates against the whole experiment.
