A useful robotic laser-welding trial begins with the joint and the required finished part. Bring representative material, measured fit-up variation and agreed quality tests to the supplier. The robot, laser, optics, fixture and inspection method then become parts of one process that can be evaluated.
This guide helps manufacturing engineers prepare that trial and interpret the result. Process development and cell commissioning belong with qualified welding, laser-safety and integration specialists. The planning examples below contain no operating settings or approved safety design.
Choose the joining mechanism around the part
A laser supplies concentrated energy at the joint. The robot positions the processing head, while optics determine how the beam reaches the material. In TRUMPF's heat-conduction explanation, surface melting joins the pieces as heat conducts into them. In deep-penetration welding, a vapor channel allows energy to couple farther into the workpiece. The material, joint geometry and required result determine which approach deserves a trial.
Ask the supplier to explain why a proposed laser wavelength, delivery method and joining process fit the actual alloy and thickness. Filler wire, beam movement, joint redesign or a hybrid process may address particular constraints, but each adds its own controls and qualification work. There is no universal gap tolerance or travel speed for “robotic laser welding.”

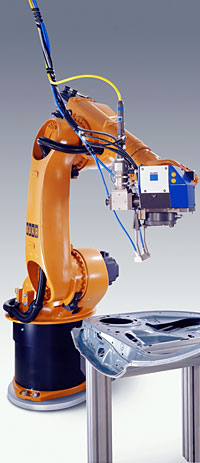

The integrated scope is visible in TRUMPF's TruLaser Weld 5000 system description: robot, laser, processing optics, protective housing and positioners are supplied as a cell. Use that as a scope reminder, not a recommendation for a particular purchase. A bare-arm quotation leaves major application questions unanswered.
Prepare a brief that represents production
Bring the drawing revision and actual parts, including the pieces that are difficult to locate or clamp. Measure the joint after forming and clamping, since nominal CAD dimensions alone do not describe the seam presented to the beam. Label each input as measured, specified or still unknown.
| Input | Record | Why it matters |
|---|---|---|
| Material and surface | Alloy, thickness, coating, cleaning state and lot | The trial must represent the material the process will receive |
| Joint geometry | Joint type, gap, mismatch, edge condition and variation | The energy and any filler must form the required connection |
| Fixture | Datums, clamping sequence, access and thermal movement | Repeatable part location supports repeatable seam location |
| Head access | Approach, stand-off, orientation, cables and positioner motion | The complete path must be reachable without interference |
| Product quality | Strength, leak, fatigue, dimensions or appearance, as applicable | Inspection must address the intended function |
| Production demand | Mix, batch size, good-part rate, changeover and staffing | Beam-on speed alone does not establish cell capacity |
EWI's pulsed Nd:YAG stainless-steel example illustrates why a narrow focused spot makes joint fit-up consequential. Treat it as a specific process demonstration. For your joint, ask which measured variations the proposed process can tolerate and what evidence supports that envelope.
For a formed enclosure, for example, the most revealing samples may be corners with the largest mismatch or parts from different tooling runs. Keep the identity of each sample through welding and inspection. This lets a failed result lead back to a known input instead of a vague explanation about “bad parts.”
Test useful variation and define the result first
- Agree on acceptance. Have the responsible product or welding engineer identify the applicable specification, limits and inspection methods before samples are produced. A visually neat seam may still leave the required penetration, strength or leak performance unresolved.
- Establish a baseline. Run representative nominal parts with a documented fixture and process revision. Preserve the complete settings in the controlled trial record maintained by the specialist.
- Challenge measured variation. Include the agreed extremes of fit-up, material and surface condition. Choose the sample count and repeat strategy around the consequence of failure and the process question.
- Connect signals to inspection. Compare monitoring results with the corresponding examined welds. A process signal becomes useful when its relationship to an accepted or rejected joint has been demonstrated.
- Record boundaries. State the combinations tested, failures, exclusions and open questions. A successful nominal coupon can justify the next trial while leaving production variation unqualified.
Retain photographs, sample identifiers, inspection results and deviations together. If a new clamp or seam-tracking approach improves results, repeat the relevant comparison with the revised setup. Keep reasons for rejected specimens in the record.
Count the whole cycle
Fictional timing example
Suppose one part requires 18 seconds of loading and clamping, 4 seconds of approach, 8 seconds of beam-on processing, 6 seconds of inspection and 9 seconds of unloading. With those tasks sequential and one part per cycle, the total is 45 seconds, giving an ideal 3,600 ÷ 45 = 80 parts per hour.
Halving beam-on time to 4 seconds changes the full cycle to 41 seconds: 3,600 ÷ 41 ≈ 87.8 parts per hour, an increase of about 9.8%. This example excludes downtime and rejects. It shows why a claim about welding speed needs a complete timing model.
For two-station loading or overlapping tasks, draw the timing sequence and identify the resource that constrains output. Check replenishment, fixture cleaning, optics maintenance, changeovers and rejected-part handling over a representative operating period. Use the manufacturing automation guide to connect demonstrated cycle time to good output and project costs.
Include integration and handover in acceptance
Plan the laser enclosure, access controls, extraction, electrical systems, utilities and robot motion as one installation. OSHA's laser-hazard technical guidance covers beam exposure and additional hazards such as fumes, electrical energy and fire. Maintenance can expose hazards that are contained during normal production. A qualified assessment must address each operating and service mode.
ISO 10218-2:2025 addresses industrial robot applications and cells. Its scope complements the application-specific laser and welding requirements selected by the responsible specialists. A cobot label, transparent panel or camera feed by itself establishes no laser protection rating. Do not bypass an interlock to watch a trial.
Agree who owns process recipes, backups, training, spare parts, preventive maintenance and configuration approval. Define what changes require renewed evidence: material, coating, fixture, optics, robot path, software or product requirements. Acceptance should identify both what passed and what remains outside the demonstrated process envelope.
Download the editable laser-welding trial brief. It includes sample traceability, the timing example and handover questions. For access and tool-load planning, see six-axis robot selection.
