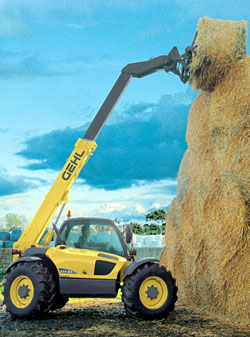

A telehandler combines a mobile chassis with a telescoping boom so it can lift and place loads beyond the reach of a conventional forklift. Choosing one starts with the work: what must be handled, how far away it must be placed, and which machine-and-attachment configuration can do that job.
The biggest number on a specification sheet is only a starting point. Maximum capacity, maximum height and maximum forward reach describe different limits. Do not combine them into an imaginary lift in which all three maxima are available together.
Read capacity at the required position
A load chart relates the permitted load to the position of the boom for a specified machine and configuration. The attachment, load center, stabilizer arrangement and other conditions identified on that chart matter. The chart is not a generic property of all telehandlers with the same advertised capacity.
As a real example of the distinction, the JLG 2733 product specifications list a rated capacity of 26,600 pounds, capacity at maximum height of 15,500 pounds and capacity at maximum reach of 8,000 pounds. These published summary figures illustrate why the headline rating cannot be used at every position. They are not permission for a particular lift; the correct serial-number-specific manual, attachment chart and operating conditions govern.
The load center describes where the load’s center of gravity lies relative to the specified reference on the attachment. A bulky load can place that center farther forward even when its total weight looks modest. Include the actual package and handling arrangement rather than substituting a familiar pallet size.
JLG’s telehandler stability guidance emphasizes approved attachments, the matching capacity chart and the effect of load position and machine level. It also explains that the limiting capacity can come from the machine, chart, forks or attachment. Do not create a replacement chart by dividing a headline rating or applying a guessed derating percentage.
Describe the job before choosing the model
A useful inquiry gives a rental company or equipment supplier enough information to evaluate the task. “I need a large telehandler” leaves the crucial geometry unanswered. Record the pickup and placement locations, obstacles and whether travel with the load is involved.
On a narrow screen, scroll the table horizontally. Keyboard users can focus the table region and use the arrow keys.
| Record | Useful detail | Why it changes the choice |
|---|---|---|
| Load | Verified weight, dimensions, packaging and center of gravity. | A heavy compact pallet and a long light bundle create different handling problems. |
| Placement | Required height, horizontal reach and clear path to the landing point. | Reaching over an obstacle can be the limiting condition. |
| Attachment | Exact approved carriage, forks, bucket or other tool. | Its weight, geometry and rating affect the permissible configuration. |
| Site | Access width, overhead obstructions, ground conditions, slopes and space for setup. | A model that fits the load may not fit or be supportable at the work location. |
| Work pattern | Pick-and-carry, stationary placement, frequency and expected hours. | Travel, setup time, service support and operator familiarity affect usefulness. |
Download the telehandler job-planning record to organize the inquiry. Keep the final equipment decision and its supporting documentation with the job information.
Choose the tool and machine together
Fork carriages, buckets, lifting hooks and personnel platforms are different applications. Physical attachment to a coupler does not establish suitability. Check the manufacturer’s approved combination and the instructions for that use, including hydraulic connections and any required control or recognition system.
Fixed-boom and rotating telehandlers also deserve separate consideration. A rotating upper structure can change how stationary placement is organized, while access, setup footprint and chart conditions still need checking. Compare the complete work process rather than assuming rotation is automatically an advantage.
For U.S. construction work, OSHA 1926.602(c)(1)(ii) addresses manufacturer approval for modifications affecting capacity or safe operation. Section 1926.602(d) addresses operator training. These are U.S. construction provisions; other jurisdictions and applications require their own applicable rules.
Personnel lifting needs a separate assessment. Read the companion remote-control work-platform guide before treating a platform as an ordinary material-handling attachment.
Plan the setup, visibility and daily checks
Ground that supports a parked machine may behave differently under a working configuration. Underground services, excavations, recently filled areas, suspended slabs and changing weather belong in the site assessment. Establish the necessary ground-support and clearance information through the responsible site personnel and equipment documentation.
Before use, follow the machine’s inspection and function-test procedure. JLG’s pre-operation inspection guidance describes checking structural and hydraulic components, tires, forks, guards and controls. A damaged attachment, missing chart or unexplained fault needs resolution before work, not a workaround invented at the machine.
Plan visibility and communication along the entire movement. Changing the operator’s position or using a camera does not make people behind a load visible by default. Keep the work area controlled and use the communication arrangements required by the job and equipment instructions.
Digital assistance can display information or help collect inspection records. A planning system can flag a missing manual number; it cannot establish ground bearing capacity from an unverified note. AI-generated load charts or equipment approvals have no place in the operating decision.
Make the handover specific
At delivery, match the machine identification and serial number to the manuals, attachments and charts actually supplied. Confirm service condition, operator training and familiarization, the inspection process, and who to contact about a fault. JLG’s technical-publications portal is one example of a manufacturer source for model-specific documentation.
A useful selection result is a documented match between the job and an approved configuration. Preserve the assumptions that made it suitable. If the load, attachment, location or ground conditions change, revisit that match before continuing.
