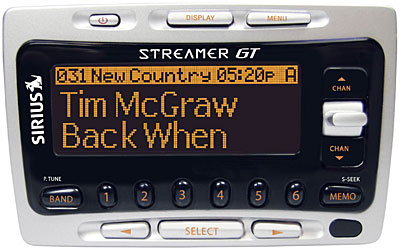

A lit Streamer GT screen, a received satellite signal and sound from a stereo are three different observations. Use the receiver’s labels to trace them in order. This guide covers the Brix Sirius Streamer GT SIR-SL1, using its October 2004 manual, and helps you describe a fault before replacing parts.
Identify the model and connection roles
Confirm SIR-SL1 on the unit and open the Streamer GT manual (PDF). Its page 7 identifies the connections below; page 32 names the optional SIR-SLH1 home kit. Keep that model identification attached to every accessory search.
On a narrow screen, swipe the table sideways or focus it and use the arrow keys.
| Receiver label | Purpose | What to identify |
|---|---|---|
| DC 12V | Power input. | The model-supported adapter and its own label. |
| ANTENNA | Satellite antenna input. | The supported antenna and cable. |
| AUDIO OUT / VOL | Audio or headphone output with volume control. | The receiving stereo input and chosen audio lead. |
| FM OUT | Connection for the optional wired FM switch-box accessory. | The documented accessory; this has a different role from AUDIO OUT. |
Find the first missing result
The manual’s troubleshooting table, page 30 is the starting point for these checks. Make vehicle adjustments while parked. Use documented replacement parts and qualified installation help for wiring or internal faults.
On a narrow screen, swipe the table sideways or focus it and use the arrow keys.
| Observation | Next check | Useful result to record |
|---|---|---|
| Screen stays dark | Check the documented power connection and adapter; consult the manual for fuse requirements. | Which power parts were present and what changed. |
| ANTENNA NOT DETECTED | Check the satellite antenna connection and cable condition. | Exact message before and after checking the connection. |
| Reception is weak or absent | Use Signal Indicator; check antenna placement and obstructions. | Location and SAT/TER indication. |
| Channel appears, stereo is silent | Trace the selected audio route, cable, stereo input and relevant volume settings. | Direct audio or FM; the input selected. |
| FM listening has static | Check the transmitter and stereo frequency settings; try a suitable clear frequency. | Both frequency settings and whether the noise changes. |
Change one relevant setting, observe the result, then decide the next step. Changing the antenna, stereo input and receiver settings together can hide which change helped. Record the exact message rather than translating every problem into “no signal.”
Distinguish browsing from tuning
In list modes, the manual’s Auto Select setting determines whether highlighting a channel tunes it automatically or requires SELECT (page 24). CHAN moves through choices; SELECT confirms. BAND changes preset banks, while holding BAND enters preset-tuning mode. A highlighted item can therefore mean something different from the channel you are hearing.
If the display is a browsing list, confirm the intended selection as well. Describe the screen state in your notes so another person can reproduce the test.
Keep the equipment and service questions separate
Photograph the receiver and accessory labels before seeking replacements. A similarly shaped Starmate part or another Streamer generation needs its own compatibility evidence. For a home installation, the home listening guide helps choose between a receiver arrangement and internet listening.
Ask current SiriusXM support about eligibility for the exact SID and service you want. A working display by itself leaves reception, audio and account access untested. Use the legacy receiver notes sheet to keep those results distinct. This guide is based on documentation, not a bench test of your receiver.
