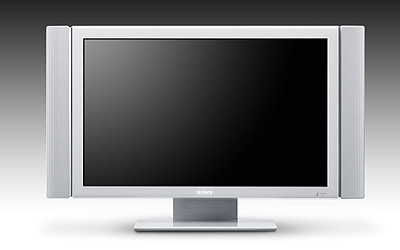

A legacy plasma display can be useful for suitable video content, but reuse depends on the exact input configuration, supported signal and condition of the panel. Sony’s PFM-42X1 and FWD-50PX1 illustrate why the model suffix and manual matter more than a screen-size label.
Identify the panel and installed inputs
Record the full rear label, including an N suffix, and photograph the input panel. Optional boards can change the available connections. Consult the English sections of Sony’s PFM-42X1/42X1N operating instructions and FWD-50PX1/50PX1N operating instructions. Both are 2004 documents covering specific equipment.
On narrow screens, focus the table and use the arrow keys or swipe to see every column.
| Check | PFM-42X1 family | FWD-50PX1 family |
|---|---|---|
| Panel pixel matrix | 1024 × 768 | 1280 × 768 |
| Signal selection | Check the preset-input table and the installed input option. | Check the preset-input table and the installed input option. |
| Image-care reference | Screen Saver section: inversion, orbit and background controls. | Screen Saver section also documents an All White function. |
The pixel matrix and the accepted input signal are separate specifications. A widescreen panel can use non-square physical pixels or scale an incoming image. Choose a timing explicitly supported by the selected input, then judge shapes and cropping on screen. An accepted high-resolution signal does not add physical pixels.
Build a testable connection
- List the source output, every converter, the display input, and the signal format at each point. Confirm the converter’s direction and supported modes from its own documentation.
- Start with a supported, ordinary desktop or video signal and the correct input selected. Test audio as a separate path if the connection does not carry it to the display.
- Show a circle, a square, and content near each edge. Compare the aspect and screen-size settings until shapes are correct and the required edges remain visible.
- Try the actual playback device and content. Check fine text from the intended viewing distance, not only a bright demonstration scene.
- Record a known-good source, cable and mode so future faults can be compared against a baseline.
For a blank picture, first determine whether the display’s own menu appears. Then isolate input selection, timing, cable and converter one at a time. If the menu itself is abnormal or the display behaves erratically, stop the setup trial and seek qualified service. Keep internal electrical repair outside an ordinary reuse assessment.
Reduce repeated static exposure
Sony’s PFM-42X1 manual identifies prolonged fixed content, logos and unused border areas as contributors to image retention. It describes image-care settings to reduce uneven exposure. The FWD-50PX1 manual also warns that its reduction functions may not completely remove an existing afterimage or burn-in. Treat persistent marks as a condition to assess, with recovery uncertain.
- Prefer content that changes across the screen, and turn the display off when the task is finished.
- Review static logos, menu bars and borders in the actual playlist. Repeating a video with the same fixed overlay still gives that region a different exposure.
- Use the model’s documented brightness and screen-care controls. Check any scheduled inversion or orbit setting against the content’s readability.
- For an existing mark, use only the exact model’s documented procedure and reassess ordinary content afterward. Avoid improvised maximum-brightness routines or promises of a complete cure.
A temporary residual image can change with subsequent use; a lasting visible pattern can remain. A short inspection cannot establish the future life of an aged panel. Photograph observations under comparable conditions so improvement or persistence is judged consistently.
Decide whether reuse fits the job
Illustrative decision: a museum needs a screen for a changing historical-video program. It tests the full playlist and finds acceptable image quality, but a persistent corner mark interferes with captions. Moving captions may solve that particular viewing problem; it does not repair the panel. The acceptance decision should state the limitation and the content for which the display remains usable.
Evaluate readable content, existing marks, sound, warm-up behavior, ventilation and a properly specified stand or mounting arrangement. Use the exact installation instructions and qualified help for heavy-display installation. If comparing electricity use, measure the complete setup during representative operation rather than borrowing a launch-era power claim. For another display technology, see OLED selection and care; for retirement, see equipment disposal and data handling.
