An offshore oil pipeline connects production with a market. To interpret its role, trace where the crude enters, which junctions and export lines it uses, and where it can be delivered onshore. Then separate the system's design capacity from the amount it actually transports.
Cameron Highway Oil Pipeline System, usually called CHOPS, is a useful example because it links deepwater production with Texas coastal markets. Read maps, asset descriptions and dated operating reports together; each answers a different question.
Trace the complete delivery chain
Crude may leave a production facility through a field lateral, reach an offshore junction, enter a larger pipeline to shore and then pass through a terminal or onshore connection. Identify each segment and its owner, operator and delivery points. A connection on a map establishes a route; commercial access and available capacity require additional documentation.

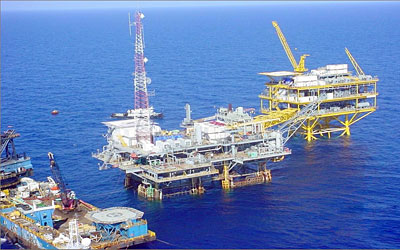

Genesis Energy's pipelines-to-shore description, checked September 8, 2026, describes CHOPS as a 380-mile crude system delivering to Port Arthur and Texas City markets. It identifies 24- and 30-inch pipe and three offshore platforms. These are the operator's system-description figures.
For a project review, draw a simple chain from the producing facility to the intended delivery point. Annotate interfaces where ownership, crude specifications or capacity change. Keep crude oil and associated natural gas routes separate even when both leave the same offshore development.
Read the denominator behind each number
On a narrow screen, scroll the table sideways. Keyboard users can focus the table region and use the arrow keys.
| Figure | What it describes | What to check |
|---|---|---|
| Design capacity | A stated flow capability under defined conditions | Segment, crude assumptions, pumping arrangement and date |
| Throughput | Oil actually transported during a period | Daily average, operating-day average, total volume and downtime |
| Ownership interest | An economic interest in an asset | Whether reported volumes represent the whole system or a share |
| Committed volume | A commercial arrangement | Period and contractual definition; distinguish it from measured flow |
| Length and diameter | Physical system description | Included segments and current asset boundary |
Fictional utilization calculation
A hypothetical line has stated capacity of 500,000 barrels per day. It delivers 9 million barrels over a 30-day month, including downtime. Average throughput is 300,000 barrels per day, so average utilization against that stated capacity is 60%.
If the line operated for 25 days, its operating-day average is 360,000 barrels per day. Both averages describe the same monthly volume. Label the denominator before comparing reports. These numbers are invented and do not describe CHOPS.
Low average utilization can reflect production availability, maintenance, weather or market conditions. It alone cannot identify the cause. Look for the operator's explanation and the relevant period's operating data.
Connect crude quality with the destination
Refineries are configured for particular feedstock ranges and product objectives. Density and sulfur content are two important crude characteristics. EIA's explanation of crude-oil quality distinguishes lighter/heavier and sweeter/sourer oils and explains why refinery equipment matters.
Ask which crude specifications apply at entry and delivery, whether streams are blended, and how quality is measured. A route to a refinery market has value only within the receiving system's physical and commercial conditions. Treat claims about a crude discount or refining advantage as dated market observations that need their own evidence.
A terminal also introduces storage and onward-transport boundaries. Confirm whether the stated pipeline delivery point is the refinery itself, a storage terminal or an interconnecting carrier.
Use dated records to understand change
Genesis Energy's 2025 Form 10-K reports completion of a CHOPS expansion during 2025, including platform work and additional pumps, alongside completion of the SYNC pipeline. It describes SYNC's connection of the Shenandoah development into the existing system. This is evidence of reported completed infrastructure work; measured throughput belongs to the separate operating disclosures.
For any offshore project announcement, record whether it describes a proposal, construction, commissioning, first deliveries or sustained operation. Distinguish the asset operator's report from independent inspection or regulatory records. Verify the relevant authority for the particular pipeline segment and question; an investor presentation is not a permit or integrity assessment.
A useful reading note ends with the route, physical boundary, number definitions, reporting date and open questions. That makes a later expansion or changed production connection easier to interpret without rebuilding the entire explanation.
