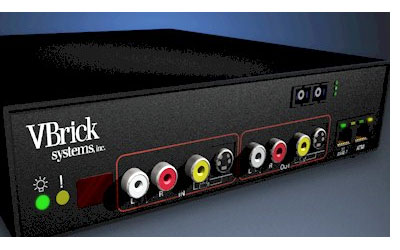

A network video appliance connects a video source to a streaming workflow. Specify the whole path—from the source signal to the viewer's display—and test picture, sound, bandwidth and delay before relying on it for an event.
Draw the signal path in five parts
Write down the source or camera, encoder, network, receiving decoder or service, and display or viewer. Add audio at the point where it enters. An encoder converts the input into a compressed stream; a receiving application or device must understand both the encoded media and its delivery method.
On narrow screens, focus the table and use the arrow keys or swipe to see every column.
| Stage | Record | Test |
|---|---|---|
| Source to encoder | Input connector, resolution, frame rate and audio route | Stable picture and correct sound at the encoder |
| Encoding | Video/audio codecs, bitrate and supported settings | The receiver decodes the intended configuration |
| Network delivery | Protocol, destination, required connectivity and access controls | A private test stream reaches the authorized receiver |
| Playback and recording | Decoder, display, recording format and storage location | Audio sync, acceptable delay and a playable recording |
Magewell's Ultra Encode AIO manual is an example of product-specific configuration covering input, encoding and delivery settings. Its options illustrate why “supports streaming” is too broad a purchasing requirement. Compare the exact firmware and endpoints, not just product-category labels.
Separate broadcasting from a conversation
A one-way lecture distribution system can tolerate different delays from a two-way discussion. Define whether the viewer needs to watch, ask questions through a separate channel or participate in a real-time call. A streaming encoder is not automatically a complete conferencing endpoint with camera selection, echo control and return audio.
Codec names and transport names also answer different questions. H.264 describes video encoding; a delivery method such as SRT describes another part of the route. Both sender and receiver must support the chosen combination and settings. Do not assume that a matching connector or protocol checkbox guarantees compatibility.
For a computer-based call, the webcam setup guide covers camera, microphone and room checks. For appliance distribution, document who controls the encoder, receiving service and network so each part has an owner.
Estimate payload, then measure the complete stream
Add video and audio bitrates before estimating network load or recording size. Allow additional capacity for protocol overhead, variation, retransmissions where used and other traffic. Measure at the intended destination during representative conditions; a fast local speed test does not characterize the whole route.
Illustrative calculation: 6 Mb/s video plus 192 kb/s audio equals 6.192 Mb/s of encoded payload. Over one hour, 6.192 × 3,600 ÷ 8 gives 2,786.4 MB, or about 2.79 GB using decimal units, before container and transport overhead. A recording with different encoding settings will have a different size.
If an appliance sends 20 separate identical unicast streams, that example implies 123.84 Mb/s of outgoing encoded payload before overhead. If it sends one stream to a distribution service that serves the viewers, the appliance's outgoing load follows that single contribution stream instead. Confirm the actual architecture and appliance limits.
Measure delay at the viewing endpoint
End-to-end latency includes capture, encoding, buffering, network transport, decoding and display. Measure at the viewing endpoint to include all those stages. Haivision's SRT latency documentation describes the protocol's packet buffer, which is one part of this larger path. Start with the manufacturer's supported configuration and adjust only after establishing a repeatable baseline.
For a practical visual test, point the source camera at a running timer. Record the original timer and the receiving display together in the same camera frame, then compare their visible values. Repeat several times and note the test camera's frame interval and timer precision. This is an approximate end-to-end measurement, not laboratory timing.
Use a visible action with a sharp sound to inspect audio/video alignment in a test recording. Record the configuration, destination and observed range of delay. Acceptability depends on the event's purpose, not a universal latency number.
Rehearse recovery and recording continuity
- Use a private test destination and authorized network path. Confirm image framing, sound, permissions and recording location.
- Run a representative session long enough to reveal thermal, storage or connection problems. Watch appliance and receiver status.
- In the test environment, interrupt and restore the connection through a planned procedure. Check reconnection, viewer behavior and any gaps in the recording.
- Play the saved recording from its beginning, middle and end. Confirm that the configured storage has room for the actual event.
- Save a configuration record without passwords or stream keys. Identify an operator and fallback for the live session.
If playback fails, first verify the encoder's local input, then a supported local receiver, then the remote route. Changing one stage at a time makes the result actionable.
