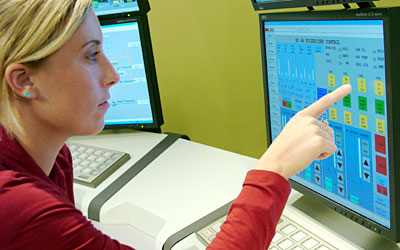

An LCD touchscreen combines a display with an input device. A clear picture proves the video path works; it does not prove that touch reaches the computer or maps to the correct screen. Evaluate both paths with the application, hands or approved stylus that will actually be used.
Trace video, touch and power
Many monitors use HDMI or DisplayPort for the picture and a separate USB upstream connection for touch. Some supported USB-C arrangements combine functions, but the host port, cable and monitor must all support the required features. Elo's Windows setup guide describes these two connection patterns. Follow your model's manual for its actual ports and power requirements.
Record the monitor model, touch-controller support, OS version and available host ports before purchasing. Check whether the manufacturer requires a driver or utility for the functions you need. A USB socket intended for downstream accessories may not be the upstream touch connection.
On narrow screens, focus the table and use the arrow keys or swipe to see every column.
| Symptom | Check first | Useful isolation step |
|---|---|---|
| No picture | Power, selected video input and supported signal | Try a known-good direct video path at a supported setting |
| Picture, no touch | Touch upstream cable, OS detection and required software | Bypass the hub using the documented touch connection |
| Touch affects another screen | Touch-to-display assignment | Run the supported OS or manufacturer display-mapping procedure |
| Missed or displaced touches | Input method, screen condition and configuration | Compare bare-finger input with the intended glove or supported stylus |
Choose touch behavior for the job
Projected capacitive sensing uses changes in an electrical field; resistive systems respond to pressure on the touch surface. The technology name alone does not specify glove support, simultaneous touches, stylus compatibility or rejection of accidental contact. Elo's technology overview describes its implementations, and its heavy-glove guidance identifies important limits for those products.
For a reception desk, test repeated taps and scrolling. For an industrial workstation, test the actual permitted glove and cleaning routine. For drawing or signatures, ask whether the supported pen provides only pointer input or additional features such as pressure. A passive stylus is not automatically equivalent to an active pen.
Evaluate the LCD itself separately: text size, reflections, viewing angle and visibility in the intended room. Test the stand's stability while tapping near corners. A screen that looks good upright may be uncomfortable or unstable at the angle needed for prolonged touch input.
Set up and map the screen deliberately
- Connect the documented power, video and touch paths. Begin with a direct host connection to reduce variables.
- Set the intended resolution, orientation and desktop arrangement. Confirm readable application controls before adjusting touch behavior.
- Check that the OS recognizes the touch device. Obtain any required software from the manufacturer for the exact model and OS.
- Use the supported display-assignment procedure if a touch lands on a different monitor. Assignment and calibration solve different problems.
- Calibrate only when the manufacturer or OS procedure calls for it. Retest after rotating a display, rearranging screens or changing a dock.
Example: a laptop screen and external touchscreen show an extended desktop. Tapping the external screen activates the laptop's buttons. Correct the touch/display assignment first; replacing the LCD panel would not address that mapping error.
Test the real application before deployment
Create a short repeatable sequence: select controls at all four corners and the center, scroll a long view, drag an item, enter text, and perform any required multi-touch gesture. Repeat with the intended input method. Record missed, doubled or offset actions, including their screen locations.
Then test sleep/wake, reconnecting the dock and restarting the application. Check that a keyboard or another supported input method can complete essential tasks if touch becomes unavailable. Clean the screen only as its manufacturer directs; persistent faults should be assessed after cables, mapping and supported input methods have been isolated.
