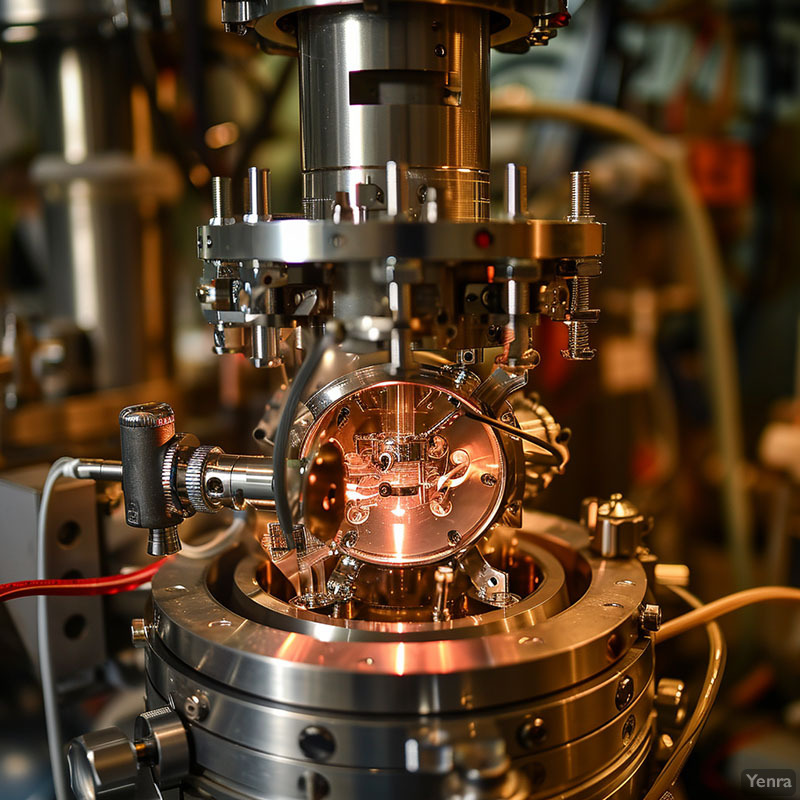

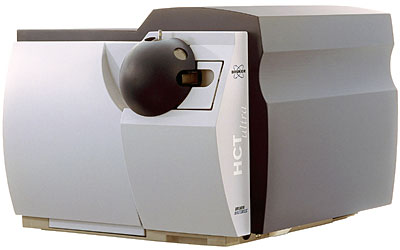

An ion trap holds charged particles long enough to select, manipulate and analyze them. In mass spectrometry, this makes it possible to isolate a precursor ion, fragment it and study the products, sometimes through several successive stages. The resulting spectrum depends on the sequence of decisions used to obtain it.
This guide focuses on trap-based mass spectrometry. Start with the mass-spectrometry guide if mass-to-charge ratio, charge state and fragmentation are unfamiliar. Ion traps used in quantum computing share the general idea of confining ions but serve different experiments.
Follow one group of ions through the experiment
Quadrupole ion traps use time-varying electric fields to confine ions. Three-dimensional traps and linear traps have different geometries and capabilities. Electrostatic analyzers such as an Orbitrap use another physical arrangement and readout; the word “trap” by itself does not specify resolution or the way ions are detected. Hybrid instruments combine components, so identify which part performs each step.
On a narrow screen, focus this table and use the arrow keys to scroll.
| Step | What happens | What to record |
|---|---|---|
| Accumulate | Ions are collected for a controlled time or target population. | Fill settings, actual injection time and relevant warnings. |
| Isolate | A selected mass-to-charge region is retained for further analysis. | Precursor m/z, charge assignment and isolation width. |
| Activate | Energy is supplied so selected ions can produce fragments. | Activation method, energy setting and duration. |
| Analyze | Product-ion signals are measured by the configured analyzer. | Mass range, scan mode, detector/analyzer and processing. |
MS/MS is often written MS²: precursor selection is followed by product-ion analysis. In MS³, a selected product from the previous stage is fragmented and analyzed again. Each extra stage asks a more specific question about a fragmentation pathway, while also using time and losing some ions. Thermo Fisher's technical note on data-dependent ion-trap analysis illustrates such sequences. Its software features are historical examples, not a list of capabilities shared by every instrument.
Balance ion population and acquisition time
More ions can strengthen a signal, but their mutual electric interactions can also perturb the measurement. Automatic gain control helps manage the population by adjusting accumulation. The target, the incoming flux and the maximum injection time interact: a low-abundance precursor may reach the time limit before the requested target is achieved.
Thermo Fisher's 2018 study of space-charge limits and gain control distinguishes storage, isolation, activation and spectral limits. The practical lesson is to evaluate the actual analytical sequence. Capacity for storing ions and conditions for obtaining a useful spectrum are separate specifications.
Use the instrument's supported settings and check observed behavior. When comparing two runs, retain the injection-time distribution and scan settings alongside intensity. A difference in signal may reflect changed accumulation or isolation as well as a difference in the sample.
Selection rules determine what gets fragmented
Data-dependent acquisition chooses follow-up scans using an earlier survey spectrum and configured rules. Common decisions include intensity thresholds, allowed charge states and whether a recently selected precursor is temporarily excluded. Dynamic exclusion can give other ions an opportunity to be examined, but its timing must fit the chromatographic experiment.
Read the isolation history with the spectrum
An isolation window can include another ion near the selected precursor. Its fragments may enter the product spectrum and complicate assignment. Check precursor purity, neighboring peaks and chromatographic behavior before treating every product as part of one molecule's pathway. A nominal precursor label alone does not establish chemical purity.
Fragmentation behavior also depends on activation conditions and charge state. Compare reference spectra acquired under compatible conditions, and distinguish a candidate match from a confirmed identification. Mass accuracy, resolving power and intensity repeatability should be evaluated for the analyzer and scan mode actually used.
Keep the raw file, sample preparation, ionization method, chromatographic method, precursor rules, isolation widths, fill limits, activation settings and software version. If a peak is missing, examine whether it was present in the survey scan, selected for fragmentation, retained through the sequence and covered by the final mass range. This sequence turns a vague “the instrument missed it” into questions the data can answer.
