SiGe BiCMOS combines silicon-germanium bipolar transistors with CMOS circuitry so a designer can use different devices for different jobs on the same chip. Evaluate the complete circuit requirement, including gain, bandwidth, noise, voltage and power, before treating one device-speed number as a verdict.
IBM’s thin-silicon research in 2003 explored how a vertical SiGe-base bipolar transistor could coexist with a CMOS-compatible silicon-on-insulator substrate. Its measured devices and projected scaled devices provide a useful lesson in reading semiconductor claims.
Why combine two device types?
CMOS means complementary metal-oxide-semiconductor technology. Its complementary transistor structures support digital control and many analog functions. A SiGe heterojunction bipolar transistor uses a silicon-germanium base region to shape carrier transport. In a BiCMOS design, the device types share a manufacturing platform while serving different circuit requirements.
IHP’s SiGe BiCMOS technology brochure shows practical process offerings with separate CMOS supply and bipolar performance specifications. That separation is useful: process-node dimensions, transistor speed and operating voltage describe different aspects of a technology. For a design, use the exact process design kit, device options and model corners.
Integration can shorten connections between analog functions and digital control, but the result still depends on layout, coupling, interconnect and packaging. Begin with a block diagram: identify the signal-handling block, its control logic and the interfaces between them. Then ask which block benefits from the bipolar option.
Read the 2003 result at its actual scope

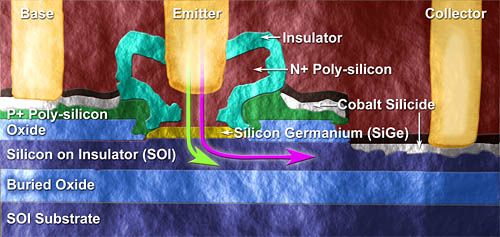

IBM’s 2003 paper, Vertical SiGe-base bipolar transistors on CMOS-compatible SOI substrate reports vertical npn devices on a 120 nm SOI layer. Collector doping, layout and substrate bias affected the results. The abstract reports measured peak transition frequencies of 60 and 71 GHz for two device cases, while a scaled 100 nm device on 55 nm SOI approaching 200 GHz was a projection. Keep those categories separate when making a comparison.
Thin SOI describes the silicon layer over an insulating layer. It adds a geometry and substrate environment that must be included in the device model. IBM’s 2004 follow-up on bipolar transistors on thin SOI discusses the concept, experimental status and prospects. These papers explain a research direction; a current circuit design also needs an available, characterized process.
Read a device metric as a conditional result
On a narrow screen, scroll the table horizontally. Keyboard users can focus the table region and use the arrow keys.
| Reported quantity | What to establish | Useful comparison |
|---|---|---|
| Transition frequency, fT | Current-gain measurement/extrapolation and bias point | Like-for-like device conditions |
| Maximum oscillation frequency, fmax | Power-gain definition and extraction method | Same method and relevant bias range |
| Noise | Frequency, bias, source impedance and bandwidth | Noise at the required circuit operating point |
| Voltage | Supply, headroom and device operating limits | Usable signal swing with margin |
| Power | Which blocks and supplies are included | Equal gain, bandwidth, load and function |
A transistor frequency metric is a small-signal device characterization, not a promised processor clock or system data rate. Request the associated curves and conditions. A peak taken at one bias may leave the circuit’s intended noise or power point unexplained.
Build a claim you could reproduce
- Write the claimed benefit in one sentence with its baseline: which circuit, device or process is being compared?
- Label the evidence as measured device, measured circuit, simulation or projection. Keep the technology dimensions and date beside it.
- Record bias, temperature, frequency range, loading and the power boundary. Mark missing conditions.
- Check the result against the actual function you need. Request circuit-level evidence if only transistor measurements are supplied.
- Conclude with the supported scope and the next missing measurement, rather than a universal ranking of materials.
For example, “higher peak fT in the stated device test” is a precise conclusion. Selecting a receiver front end requires additional noise, linearity, power and integration evidence. The integrated-circuit design guide puts those requirements into a broader design and verification process.
Keep a working record
Download the ibm thin silicon sige bipolar transistor worksheet (editable text). Save a copy, fill in the fields for your situation and record exceptions as well as successful checks. The worksheet includes its purpose, source links and any example assumptions.
