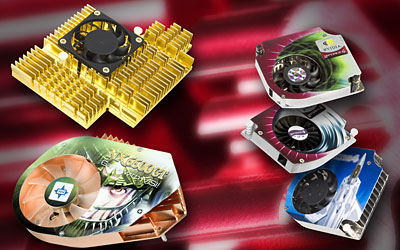

A heat sink gives heat a path out of a chip and into the surrounding air. If a computer runs hot, the cause can be poor contact, blocked airflow, a failed fan, an unsuitable cooler or simply a heavier workload. Diagnose the whole path before replacing parts, and compare temperature together with power, performance and noise.
Follow the heat from the chip to the room
In a typical desktop CPU assembly, heat travels from the silicon through the package's heat spreader, across a thermal interface, into the cooler's base, and through its heat-spreading structure to the fins. Air moving over the fins then carries energy away. Other designs, including laptop and graphics-card coolers, may contact an exposed die or cool several components with different interface materials.
Thermal paste fills tiny surface gaps that would otherwise contain poorly conducting air. It is not a replacement for correct mounting pressure or a mechanically flat fit. The specified amount and application pattern depend on the cooler and processor. Follow the installation instructions rather than assuming a thicker layer will improve contact.
A heat pipe contains a working fluid that evaporates near the heat source, condenses in a cooler region and returns through a wick or another designed return mechanism. Boyd's heat-pipe assembly explanation describes this two-phase heat transport. The pipe moves heat; fins and airflow still have to release it. A large fin stack inside a poorly ventilated case cannot make the heat disappear.
Write down what “too hot” means on this machine
Identify the exact CPU or GPU, cooler, case and firmware settings. A CPU package reading, an individual core reading and a GPU hotspot reading are not interchangeable measurements. Use the same sensor and monitoring tool version when comparing results, and look up the component manufacturer's operating limits for the exact model.
A high temperature alone does not identify a fault. Some processors use available thermal and power headroom to boost performance. Conversely, a lower reading can accompany reduced clock speed or power limiting. Intel's processor overheating troubleshooter connects thermal symptoms with installation, cooling and system checks. Treat repeated shutdowns, burning smells or a stopped required fan as reasons to stop the workload and investigate, not to run a longer stress test.
Choose a repeatable, representative task: the same render, game scene or export with the same settings. Record room or intake-air temperature at a consistent location, sensor name, CPU/GPU temperature, reported power, fan speed, elapsed time, performance result and any throttling indication. Download the blank cooling test log (CSV). Use a consistent warm-up and sampling period; one instantaneous peak and a ten-minute average answer different questions.
Check the easy causes before dismantling the cooler
Swipe the table sideways, or focus it and use the arrow keys.
| Observation | Useful checks | Important limitation |
|---|---|---|
| Temperature changed after installation | Mounting hardware, protective film removal, fan connection, interface application and firmware power settings. | A workload or power-limit change can also explain the difference. |
| Fans are loud and temperatures rise over time | Dust filters, fin blockage, intake clearance and fan-control settings. | Fan noise alone cannot distinguish restricted airflow from a heavier workload. |
| Case-open test changes behavior | Intake/exhaust arrangement, blocked vents and recirculation around the case. | An open case changes airflow paths; it is a diagnostic comparison, not a permanent cooling prescription. |
| Temperature is lower but work is slower | Power mode, clock behavior, task settings and throttling indicators. | The system may be generating less heat rather than removing it more effectively. |
| GPU core improves but memory worsens after service | Correct thermal-pad locations, specified thickness and cooler seating. | A core sensor does not report the condition of every component under the cooler. |
Power down and follow the service manual before cleaning or touching internal parts. Keep liquids away from electronics and follow the maker's cleaning method. Do not remove a cooler merely to check whether it feels hot. If removal is necessary, have the correct replacement interface materials and remounting instructions ready.
On a laptop or graphics card, pads may bridge intentionally larger gaps while paste serves a different contact. Substituting a pad of an arbitrary thickness can prevent another surface from seating. A service provider is a sensible choice when the manufacturer does not supply a procedure or suitable parts.
A lower temperature is not always a better result
The worked comparison (CSV) preserves those assumptions and calculations. Temperature above intake air is useful context, but it is not a universal correction formula. Fan curves, boost behavior, sensor placement and transient conditions can change between runs. Dividing a software-reported chip temperature rise by reported package power also does not automatically produce the heat sink's certified thermal resistance.
Change one factor at a time and repeat the same task. Keep the performance result: an export that finishes sooner at a similar noise level may be a useful improvement even if the chip remains near the same temperature. If noise is the problem, compare at a documented fan setting or consistent acoustic method rather than simply choosing the coldest unrestricted-fan result.
Choose a cooler for the processor and the enclosure
Check socket and mounting-kit support, cooler height, RAM and graphics-card clearance, case compatibility, fan connections and the manufacturer's CPU-specific guidance. A tower cooler's height can change when its fan is raised to clear tall memory. A compact enclosure may need a different airflow arrangement rather than a larger cooler that blocks another intake.
Do not treat a cooler's advertised watt rating as directly interchangeable with every processor's TDP. Actual boost power and heat concentration vary. Noctua's explanation of cooler ratings and CPU compatibility describes these comparison problems; its own rating is a vendor-specific comparison system, not a universal cross-brand scale.
After installation, repeat the baseline checks and retain the log. If the original issue remains, return to the recorded evidence before buying another component. For related fit and power checks, see choosing a graphics card; for laptop charging and heat considerations, see laptop batteries and power banks.
