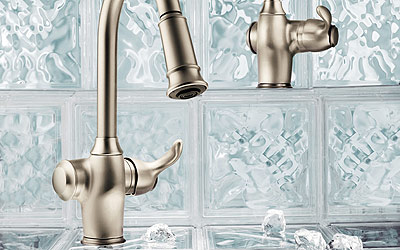

A pull-down faucet brings the spray head to the work. The right choice reaches the useful parts of the basin, leaves room for the handle, and has space below the sink for its hose to move. Begin with measurements and a few repeated tasks before deciding on finish or electronic features.
Measure the full working area
Use a tape measure, a sketch of the sink and the proposed faucet's dimension drawing. Record the unit for every measurement. Include the mounting-hole arrangement, countertop thickness, distance to the backsplash, cabinet or window above, and basin depth. A tall spout can clear a pot while its handle still collides with the wall.
Look beneath the sink without disturbing connections. Note the disposal, trap, shutoff valves, shelves and stored supplies. The moving hose needs a clear route during both extension and return. Photograph the space for an installer; a top-view photograph alone misses much of the fit question.
| Check | Record | Decision it supports |
|---|---|---|
| Mounting | Hole count, spacing and deck thickness. | Correct mounting hardware or compatible cover plate. |
| Above the sink | Spout height, reach and handle clearance. | Window movement, pot access and comfortable control. |
| Below the sink | Available hose travel and fixed obstructions. | Whether the pull-down mechanism can operate freely. |
| Water and power | Existing connection arrangement; power access for an electronic model. | Installer scope and ongoing battery or adapter access. |
Compare features through actual tasks
List three jobs: rinsing produce, washing a large tray and filling your usual pot. Check whether you can direct the spray to the far corners without stretching or splashing over the rim. Consider the effort needed to pull out and dock the head, change the spray mode and adjust temperature with wet hands.
A pause control, magnetic docking or hands-free sensor may help a particular routine. Ask what happens when batteries are depleted, where they are changed, and which manual override is available on the exact model. Compare the complete maintenance task as well as the convenience demonstration.
For replacement parts, retain the model number. Moen's hose-identification guide distinguishes hose connections and service kits. Similar-looking heads and hoses are not enough evidence of compatibility.
Separate the symptom before touching parts
Observe whether the issue affects hot, cold, stream, spray or every mode. Note whether it began after installation, cleaning, a supply interruption or moving items in the cabinet. These observations make support advice more specific.
| Symptom | Useful observation | Next step |
|---|---|---|
| Wand hangs down | Does the hose or weight catch on stored items? | Clear movable obstructions; compare the weight arrangement with the exact instructions. |
| Low flow | One mode, one temperature or the whole faucet? | Record the pattern and find the model-specific cleaning or supply checks. |
| Water beneath sink | Where is the first visible moisture? | Stop using the faucet; arrange a repair and address the leak promptly. |
| Loose body or handle | Which component moves during normal use? | Find the correct mounting or handle-service instructions before tightening anything. |
Moen's docking troubleshooting identifies weight position, interference and a damaged docking collar as possible causes on its products. Use that as a diagnostic example, with the exact model instructions controlling adjustment. Hose designs vary.
Make maintenance and installation reviewable
Before removing a hose, cartridge or spray head, identify the part and read the procedure's water-shutoff requirements. If a shutoff is inaccessible, leaks or will not operate, have a plumber address it. Avoid forcing a connector that looks unfamiliar. Keep the parts diagram open while discussing a replacement with support.
For cleaning, follow the finish maker's instructions; an aggressive cleaner selected for a sink may damage the faucet finish. Record the cleaner and method you used if discoloration appears.
Use the downloadable worksheet to bring measurements and unresolved questions to a showroom or installer. Mark unknowns explicitly; the sheet is a planning record, not a generic plumbing installation procedure.
Take the worksheet with you
Download the faucet fit and service worksheet (plain text). Save a copy to fill in with your own measurements or observations. It includes instructions and a link back to this guide.
