An endoscopic image passes through a chain of components before it reaches a screen or recording. Understanding that chain helps a clinical team evaluate an upgrade, explain a compatibility problem and identify the right documentation. Start with the procedure and the exact equipment already in use.

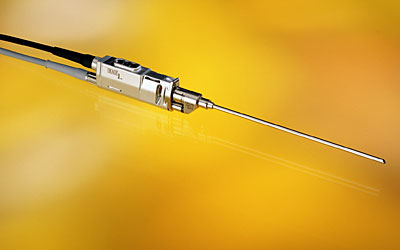

Some systems attach a camera head to an optical telescope; others incorporate an image sensor within the endoscope. The connections and processing arrangements differ. This guide supports equipment conversations and training, while the manufacturer's instructions govern assembly, clinical use and reprocessing.
Name the parts that produce and carry the image
| Part | Role | Question to resolve |
|---|---|---|
| Scope or telescope | Provides the view from the examination or operating site. | Which optical or electronic interface does this model use? |
| Coupler and camera head | In an external-camera arrangement, connect the optical view to the image sensor. | Which combinations are documented as compatible? |
| Processor | Processes the camera signal and supplies supported imaging functions and outputs. | Which hardware modules and software versions are required? |
| Light source and guide | Provide illumination in systems using a separate light path. | Which accessories and safety checks apply? |
| Display and recorder | Present and retain the resulting image. | Are the required format, modes and patient association preserved? |
KARL STORZ's imaging-system overview illustrates a modular camera platform and different visualization functions. It is manufacturer information about that product family. Use the documentation for the proposed local configuration to establish what actually works together.
Ask for a complete compatibility statement
Write down the scope, coupler, camera head, processor, software, light source, display and recorder. Ask the supplier to identify the supported combination and the evidence for each interface. A connector fitting mechanically leaves questions about signal support, imaging modes, processing and intended use.
For a concrete example, the manufacturer's IMAGE1 S HX-P FI product page names a compatible X-LINK connection and separates its imaging and processing characteristics. The page also cautions that regional availability and approval vary. Treat such details as model-specific; another camera with a similar housing can have different requirements.
Ask for a demonstration of the entire approved chain using the service's acceptance process. Record what appears on the display and what is actually saved. Resolution labels alone leave out optical quality, illumination, configuration and the clinical task.
Resolve reprocessing before procurement
Have the reprocessing team review the instructions for every reusable component, including detachable parts. Establish which validated method applies, which materials are compatible, and whether a cover or single-use accessory is required. A camera's processing instructions can differ from those of the telescope beside it.
The HX-P FI example distinguishes soakability, particular processing attributes and a single-use-cover concept; it is explicitly not listed as autoclavable. That illustrates why a generic rule for all camera heads is inadequate. Obtain the full local instructions and a trained workflow rather than converting a catalog property into a processing procedure.
Check the saved result and its context
Agree which images or clips are retained, where they go, who can retrieve them and how patient association is verified. Demonstrate the required route into the service's recording or records system. If a special visualization mode matters, confirm how that mode is represented in exported material.
Give the team a usable handover
Record trained users, inspection responsibilities, spare-component availability and the response to image loss under local clinical protocols. Staff should know which support team owns each part of the chain. Recheck compatibility after a repair, replacement or software change.
Patients preparing for an examination can use the endoscopy preparation and results guide. Equipment teams can use the medical-display guide for the viewing portion and the clinical-workstation guide for a separate records-access station.
Keep a useful discussion record
Save the endoscopy image chain: compatibility and handover record (editable text). Complete it with the responsible team and record unresolved questions as well as agreed decisions.
