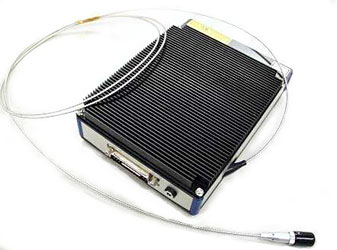

A 488 nm laser supplies blue light used in some fluorescence microscopes, flow cytometers and other analytical instruments. Its role is to excite suitable fluorescent labels so the instrument can detect a signal from the sample. Choosing a source starts with the measurement, the fluorophore and the rest of the optical system.
The number 488 specifies wavelength in nanometers. It says little by itself about optical power, beam delivery, detector performance or the quality of a biological result. Keep those specifications separate when reading a component data sheet.
Follow excitation and emission as separate steps
A fluorophore absorbs light over an excitation range and emits fluorescence over an emission range, commonly at longer wavelengths. Filters and other optics help separate the wanted signal from excitation light. Nikon's introduction to fluorescence microscopy explains these relationships and the roles of excitation filters, dichroic elements and emission filters.
A laser provides a relatively narrow wavelength output, while a dye has a spectrum. Compatibility therefore involves how well that output overlaps the dye's excitation spectrum and how the instrument collects its emission. A dye's name is a useful identifier, but its documented spectra and assay context are the better basis for a decision.
For example, Thermo Fisher's Alexa Fluor reagent guide lists separate spectral properties for each dye. Use the relevant reagent documentation and the instrument's validated configuration. A wavelength that suits one label does not establish suitability for every label in a multi-color panel.
Read the component specification in context
| Specification | Meaning | Useful question |
|---|---|---|
| Wavelength, nm | The spectral location of the source output. | Does it suit the selected fluorophore and method? |
| Optical power, mW | The output power at a specified measurement point. | Where is the value defined, and what reaches the sample? |
| Stability | How an output property varies under stated conditions. | Which time period and operating conditions were tested? |
| Beam delivery | How light is supplied to the instrument's optics. | Which alignment, interface and service requirements apply? |
| Detection band | The wavelengths admitted to a detection channel. | Which emission is collected and which unwanted light is rejected? |
Coherent's flow-cytometry overview shows 488 nm among several excitation wavelengths used in multi-wavelength systems. It helps place the blue source within a broader instrument. Manufacturer specifications describe a component or configuration; the laboratory method still determines whether the complete measurement is useful.
Check the measurement before interpreting brightness
A displayed signal reflects more than the source. Sample preparation, the labels present, collection optics and acquisition settings all form part of the experiment. Keep the settings and controls required by the validated method with the result. For a multi-color method, ask the laboratory specialist how overlapping signals are handled and which controls establish the interpretation.
Keep laser safety and servicing with trained staff
The FDA's laser-product overview explains that hazards depend on laser class and accessible radiation. A finished instrument and an exposed internal source can present different access conditions. Follow the instrument instructions and the laboratory's laser-safety program.
Do not open housings, defeat interlocks or improvise beam alignment. Ask who is authorized to service the source and what verification is required after replacement. For procurement, obtain the source model, optical interface, supported configurations, service terms and the responsible safety contact.
Leave a review meeting with a complete chain: biological question, label, excitation, detection, controls and interpretation. For the separate issue of displaying clinical images, see the medical-imaging display guide.
Keep a useful discussion record
Save the 488 nm fluorescence: instrument and assay questions (editable text). Complete it with the responsible team and record unresolved questions as well as agreed decisions.
